R290 Series

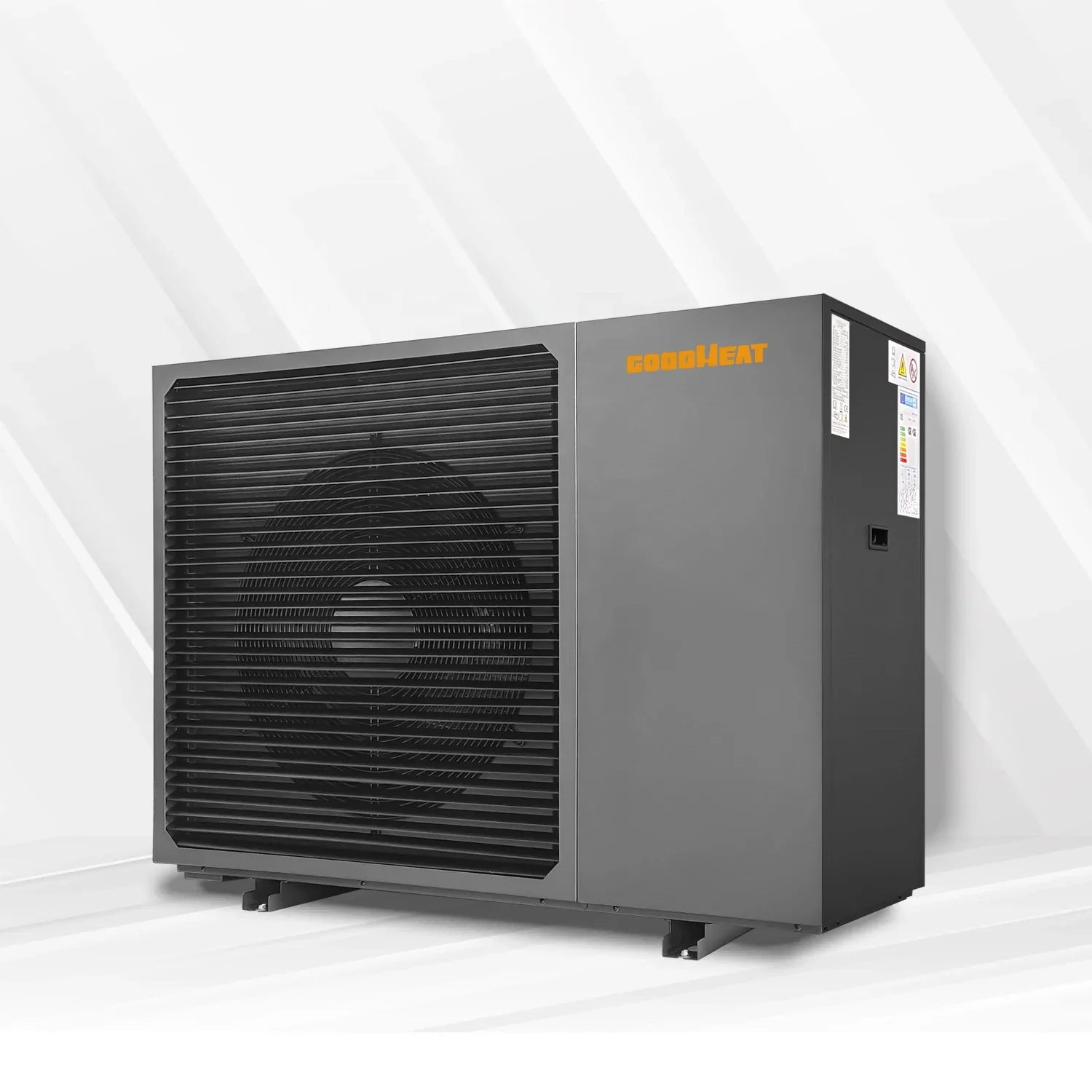

6kW R290 Domestic Heat Pump Dual A+++ ERP Inverter Air 55℃ Heating Cooling Electric French-speaking Household Hot Water

icrush-schmuck

6kW R290 Domestic Heat Pump Dual A+++ ERP Inverter Air 55℃ Heating Cooling Electric French-speaking Household Hot Water

(0)

€1.566,00

Products Description

Eco-friendly

Using eco-friendly R290 refrigerant, with a Global Warming Potential (GWP) as low as 3, our heat pump delivers higher heating efficiency and an environmentally friendly solution. It effortlessly heats even in temperatures as low as -25°C.

Safety First

Given the flammable and explosive nature of R290 refrigerant, our unit prioritizes user safety with its integrated refrigerant leak sensor ,automated pressure relief valve and gas separator(optional). These advanced features ensure the immediate detection of any leaks, while simultaneously preventing the refrigerant from contaminating the water system.

Premium Components

To ensure optimal product performance, all key components are sourced from renowned industry brands. This includes the fully variable-speed DC HIGHLY twin-rotor compressor, the plate heat exchangers from Danfoss or Weyee, and the water pumps from Grundfos or Shimge.

Superior Efficiency

Achieving an impressive A+++ energy efficiency rating, our heat pump excels at both 35°C and 55°C, ensuring remarkable energy savings. This ultra-efficient performance not only reduces electricity consumption significantly but also provides optimal heating comfort, making it an environmentally friendly and cost-effective solution for your home.

Whisper-Quiet Operation

To achieve optimal noise reduction, our product features a super quiet chamber. This design encloses noise-prone components like the compressor, water pump, and piping with a combination of metal panels and sound-absorbing cotton. Additionally, sound-absorbing cotton is applied to the inner side of the metal panels, and fan blades with a notched design are used. These measures significantly minimize noise, resulting in a sound pressure level as low as 40dB(A) at a distance of 1 meter from the unit.

Integrated Terminals

Our product features a specially designed 35-position terminal block, which integrates most of the wiring into a plug-and-play terminal. This design not only facilitates easy installation and maintenance for users but also effectively separates high voltage and low voltage systems for enhanced safety and convenience.

Scalable Integration

Our system supports cascading up to 16 heat pumps, offering unparalleled scalability and flexibility for large installations. This powerful feature ensures that even the most demanding heating requirements can be met with ease, providing a seamless and efficient solution for both residential applications.

Product Parameters

Model

GSHVSH-6AA1

GSHVSH-8AA1

GSHVSH-10AA1

GSHVSH-12AA1

GSHVSH-16AA1

GSHVSH-18AA1

Capacity

6kW

8kW

10kW

12kW

16kW

18kW

Power Supply

220~240V/1N~/50Hz

Heating(Max)(Air 7/6℃, Water 30/35℃)

Heating Capacity(kW)

2.63~9.10

3.57~12.29

4.39~13.50

4.39~15.45

6.17~18.51

6.50~22.00

Power Input(kW)

0.54~2.28

0.74~3.17

0.89~3.55

0.89~4.06

1.26~4.83

1.35~5.88

Current Input(A)

2.37~10.01

3.23~13.91

4.12~15.59

4.12~17.83

5.53~21.21

2.27~9.87

COP(W/W)

2.10~5.40

4.10~5.35

3.90~5.30

3.85~5.20

3.75~5.00

3.82~5.30

Heating(Max)(Air 7/6℃, Water 47/55℃)

Heating Capacity(kW)

2.99~8.19

3.65~10.96

3.85~11.75

3.85~13.35

5.75~17.20

5.45~18.89

Power Input(kW)

1.03~2.92

1.11~3.87

1.20~4.35

1.20~5.03

1.81~5.84

2.15~6.85

Current Input(A)

4.57~12.79

4.87~17.01

5.27~19.10

5.27~22.09

7.95~25.65

9.84~30.12

COP(W/W)

2.90~3.46

2.83~3.45

2.75~3.57

2.65~3.57

2.83~3.45

2.64~3.57

Cooling(Max)(Air 35/24℃, Water 12/7℃)

Cooling Capacity(kW)

1.38~5.70

1.44~8.11

3.65~9.45

3.65~11.04

4.03~13.51

4.55~17.20

Input Power(kW)

0.67~2.44

0.90~3.20

1.12~3.51

1.12~3.97

1.45~5.03

1.85~7.31

Input Current(A)

3.06~10.27

3.93~14.05

5.18~15.42

5.18~17.44

6.37~22.09

8.47~32.1

EER(W/W)

2.03~3.02

2.00~3.15

2.00~3.10

1.95~3.00

1.98~3.05

1.96~2.98

ERP Level (Output Water Temp. at 35℃/55℃)

A+++/A+++

Rated Input Power(kW)

3.6

4.65

5.05

5.45

6.95

7.5

Rated Input Current(A)

15.0

20.4

23.0

25.0

30.5

35.0

Refrigerant Type/Charge/GWP(kg)

R290/0.85/3

R290/0.90/3

R290/1.00/3

R290/1.15/3

R290/1.4/3

Rated Water Flow(m³/h)

1.00

1.37

1.7

2.06

2.75

3.1

Fan Quantity

Fan Motor Type

DC inverter

Compressor

DC inverter

Circulating Pump

Inverter type/ Built-in

IP Class

IPX4

Sound Pressure at 1m Distance(dB(A))

43(39~51)

44(39~52)

46(39~52)

48(39~55)

49(39~55)

Max. Outlet Water Temp.(℃)

Water Piping Connections(inch)

Water Pressure Drop(kPa)

Operating Temp. Range(Heating Mode)(℃)

-25~45

Operating Temp. Range(Cooling Mode)(℃)

16~45

Unpacked Dimensions(L×D×H)(mm)

1290×460×955

1490×500×955

1190×500×1515

Packed Dimensions(L×D×H)(mm)

1320×500×1090

1320×00×1090

1320×500×1090

1520×540×1140

1220×540×1640

Unpacked Weight(kg)

135

140

160

185

Packed Weight(kg)

155

160

175

205

Model	GSHVTH-10AA1	GSHVTH-12AA1	GSHVTH-16AA1	GSHVTH-18AA1	GSHVTH-24AA1
Capacity	10kW	12kW	16kW	18kW	14kW
Power Supply	380~415V/3N~/50Hz
Heating(Max) (Air 7/6℃, Water 30/35℃)
Heating Capacity(kW)	4.39~13.50	4.39~15.45	6.17~18.51	6.50~22.00	9.63~29.13
Power Input(kW)	0.89~3.55	0.89~4.06	1.26~4.83	1.35~5.88	2.00~7.82
Current Input(A)	1.84~5.95	1.84~6.81	2.11~8.11	2.27~9.87	3.75~12.18
COP(W/W)	3.90~5.30	3.85~5.20	3.75~5.00	3.82~5.30	3.86~5.30
Heating(Max) (Air 7/6℃, Water 47/55℃)
Heating Capacity(kW)	3.85~11.75	3.85~13.35	5.75~17.20	5.45~18.89	8.45~25.89
Power Input(kW)	1.20~4.35	1.20~5.03	1.81~5.84	2.15~6.85	2.86~9.12
Current Input(A)	2.01~6.34	2.01~8.44	3.04~9.80	3.17~10.60	4.94~14.50
COP(W/W)	2.75~3.57	2.65~3.57	2.83~3.45	2.64~3.57	2.84~3.57
Cooling(Max) (Air 35/24℃, Water 12/6℃)
Cooling Capacity(kW)	3.65~9.45	3.65~11.04	4.03~13.51	4.55~17.20	6.15~19.50
Input Power(kW)	1.12~3.51	1.12~3.97	1.45~5.03	1.85~7.31	2.50~9.75
Input Current(A)	1.97~5.89	1.97~6.30	2.43~8.44	2.99~11.26	4.20~16.36
EER(W/W)	2.00~3.10	1.95~3.00	1.98~3.05	1.96~2.98	2.03~3.00
ERP Level (Outlet Water Temp. at 35℃/55℃)	A+++/A+++	A+++/A+++	A+++/A++	A+++/A+++	A+++/A+++
Rated Input Power(kW)	5.05	5.86	6.95	10.52	12.52
Rated Input Current(A)	8.5	10.0	11.7	17.3	19.5
Refrigerant Type/Charge/GWP(kg)	R290/1.00/3	R290/1.00/3	R290/1.15/3	R290/1.4/3	R290/1.8/3
Rated Water Flow(m³/h）	1.7	2.06	2.75	3.1	4.2
Fan Quantity	1	1	1	2	2
Fan Motor Type	DC inverter
Compressor	DC inverter
Circulating Pump	Inverter Type/Built-in
IP Class	IPX4
Sound Pressure at 1m Distance(dB(A))	44(39~52)	46(39~52)	48(39~55)	49(39~55)	52(50~60)
Max. Outlet Water Temp.(℃)	75	75	75	75	75
Water Piping Connections(inch)	G1	G1	G1	G1	G1
Water Pressure Drop(kPa)	20	20	55	55	60
Operating Temp. Range(Heating Mode)(℃)	-25~45
Operating Temp. Range(Cooling Mode)(℃)	16~45
Unpacked Dimensions(L×D×H)(mm)	1290×460×955	1290×460×955	1490×500×1005	1190×500×1515	1190×500×1515
Packed Dimensions(L×D×H)(mm)	1320×500×1090	1320×500×1090	1520×540×1140	1220×540×1640	1220×540×640
Unpacked Weight(kg)	140	140	165	213	215
Packed Weight(kg)	160	160	190	238	235

Product packaging

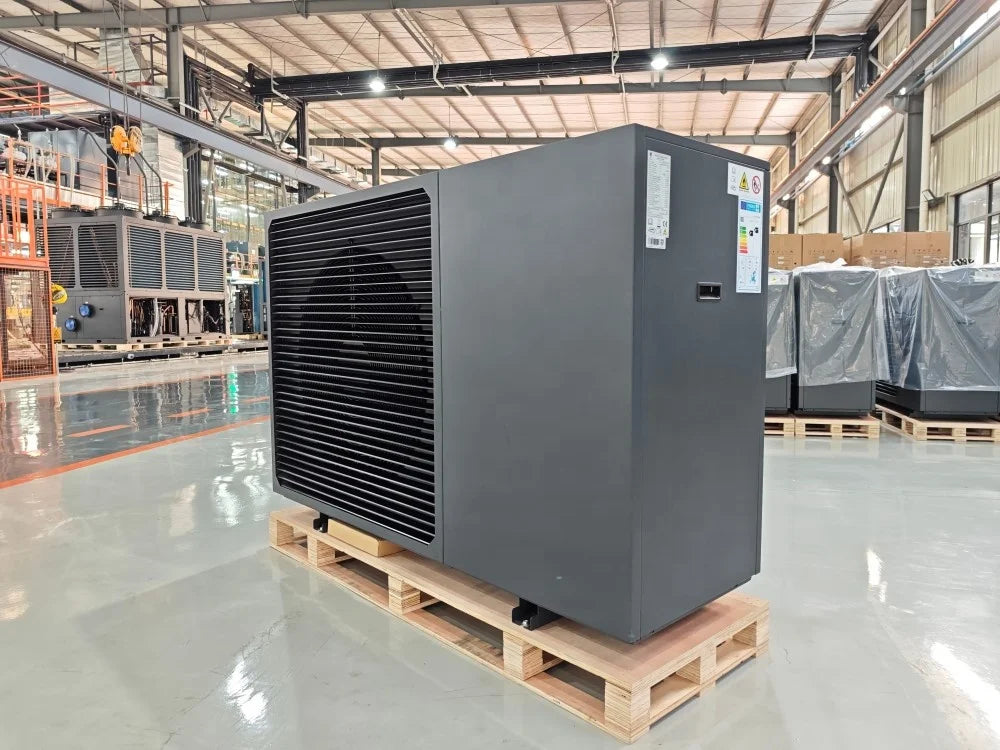

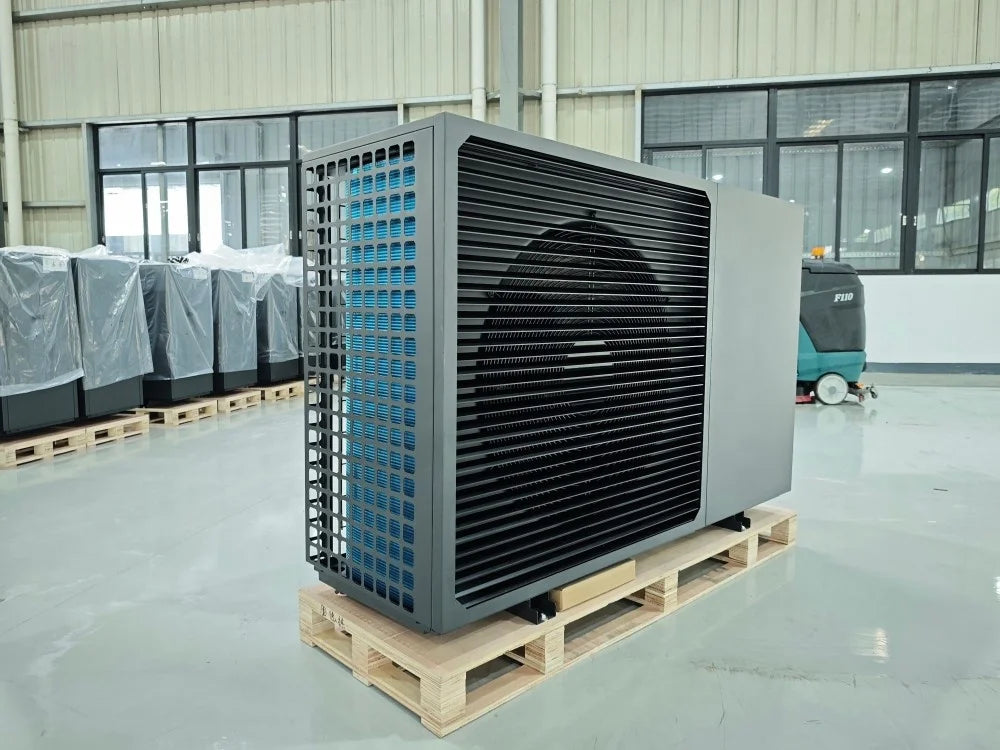

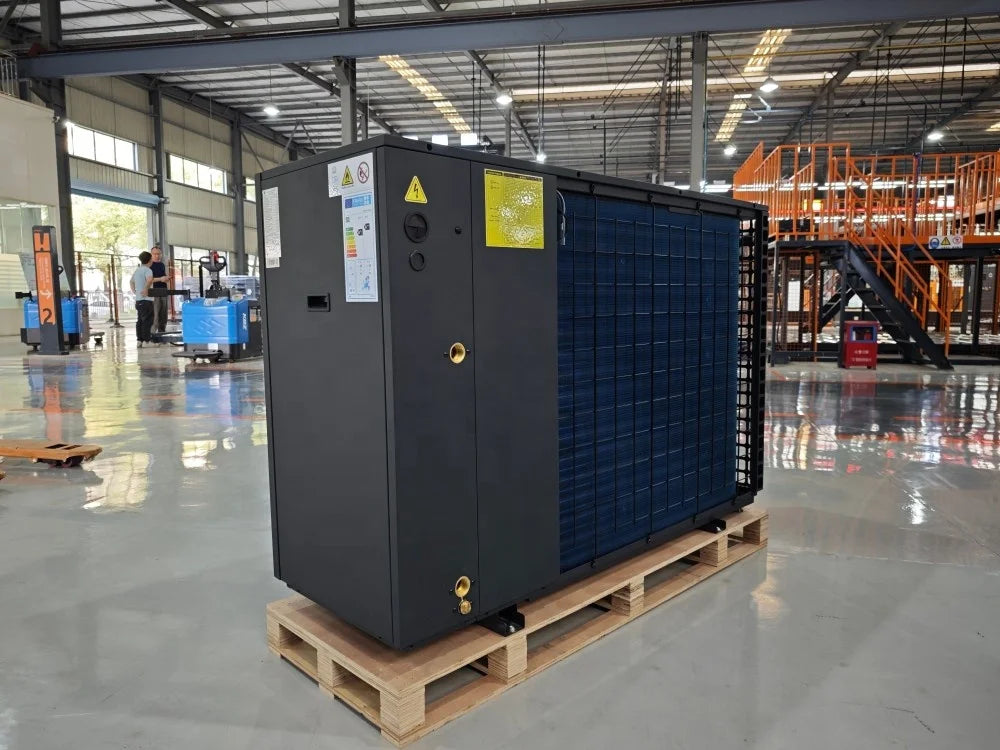

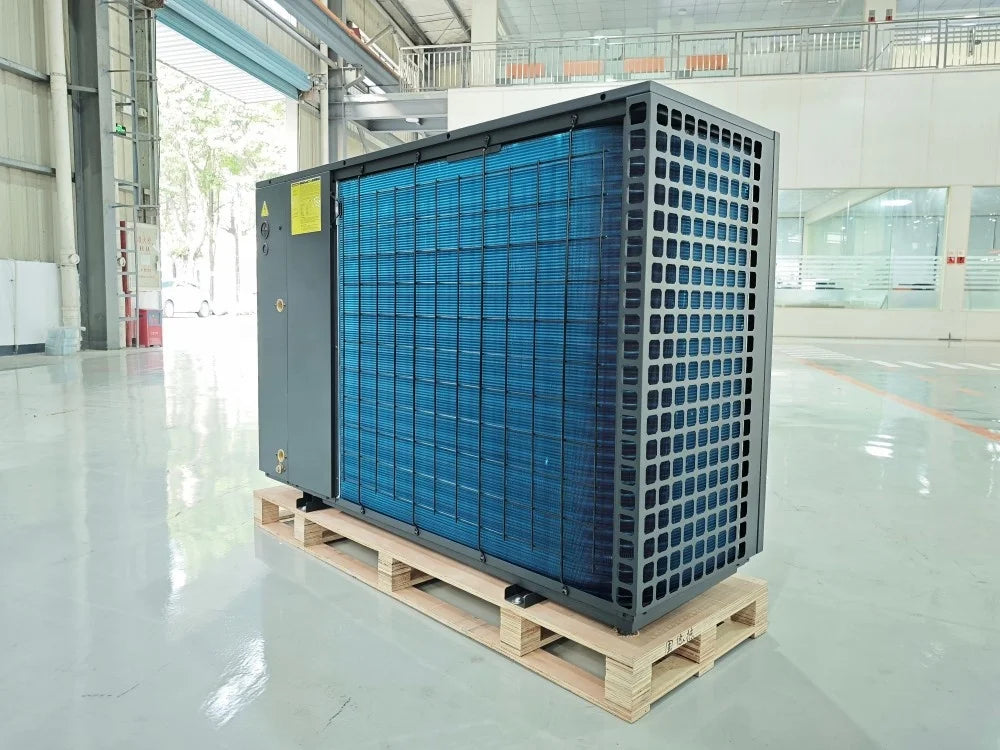

Customer Photos

Manufacturing Technique

Company Profile

GOODHEAT is a high-tech enterprise under GOODWE, focusing on the development, manufacturing and sales of heat pump products. Located in Shunde District, Foshan City, Guangdong Province, the hinterland of the Pearl River Delta, the company is committed to providing global users with high-standard heat pump products and thermal energy supply services that are green, sustainable, energy-efficient, reliable and quiet.
Business philosophy: providing GOODHEAT for global users is the only mission for the survival of the enterprise. The main products are divided into three categories: heating heat pump products, hot water heat pump products, and swimming pool heat pump products. The product capacity range covers 3kW-500kW heating capacity, which can effectively meet the heating, hot water, and swimming pool heating needs of global household users and industrial and commercial users. Four international-level explosion-proof laboratories that meet European standards, American standards, Australian standards, and national standards are equipped, covering the development and verification of 3kW-500kW heating capacity products. Five new high-standard heat pump automation production lines have been invested and built, which are globally leading.
The company upholds the concept of empowering the green earth with science and technology, harmonizing life and work, and promoting the symbiotic relationship between products and nature.
GOODHEAT focuses on good heat pump and good heat!

FAQ

Q1: Are you a manufacturer or trading company? How can I trust your company?

A: GOODHEAT specializes in manufacturing high-quality heat pump. We ensure reliability through strict quality control,
industry certifications, and transparent communication. We welcome factory visits, provide samples, and offer strong after-sales support to build trust with our clients.

Q2: Can you provide OEM/ODM service?

A: Yes, GOODHEAT offers OEM/ODM services. We have our own sheet metal production line and powder coating line, ensuring customized solutions and high-quality production tailored to your needs.

Q3: Do you have technical support?

A: We have a professional technical team standby for you 7*24 hours.

Q4: Can you help to calculate the best logistics and transportation solution?

A: Yes, our professional logistics team will help you arrange cost-effective shipping services, allowing you to ship quickly and at a lower cost. Normally we recommend shipping by FCL.

Q5: What is your lead time?

A: About 35-40 days upon deposit payment and confirmation of artwrok file.

Q6: Can you provide mounting accessories with the equipment?

A: Yes of course. This is one of our standard services and we can calculate and quote the installation kit you require.

Note: Most of our customers prefer to ship the equipment and installation materials together, we specialize in doing this with good packaging methods.

Q7: How about the packaging?

A: Carton packaging, different logos can be customized according to customer requirements.

Q8: What is the payment term?

A: Usually payment is by T/T.

Recommend Products

In stock

Receives in 6 days.

R290 8kW WiFi 4G Residential Monoblock Electric Heat Pump ErP Double A+++ at 55℃ for Households

icrush-schmuck

R290 8kW WiFi 4G Residential Monoblock Electric Heat Pump ErP Double A+++ at 55℃ for Households

(0)

€2.026,00

Product Description

Scalable Integration

Our system supports cascading up to 16 heat pumps, offering unparalleled scalability and flexibility for large installations. This

powerful feature ensures that even the most demanding heating requirements can be met with ease, providing a seamless and

efficient solution for both residential applications.

Safety First

Given the flammable and explosive nature of R290 refrigerant, our unit prioritizes user safety with its integrated refrigerant

leak sensor ,automated pressure relief valve and gas separator(optional). These advanced features ensure the immediate detection

of any leaks, while simultaneously preventing the refrigerant from contaminating the water system.

Eco-friendly

Using eco-friendly R290 refrigerant, with a Global Warming Potential (GWP) as low as 3, our heat pump delivers higher heating

efficiency and an environmentally friendly solution. It effortlessly heats even in temperatures as low as -25°C.

Superior Efficiency

Achieving an impressive A+++ energy efficiency rating, our heat pump excels at both 35°C and 55°C, ensuring remarkable energy

savings. This ultra-efficient performance not only reduces electricity consumption significantly but also provides optimal heating

comfort, making it an environmentally friendly and cost-effective solution for your home.

Premium Components

To ensure optimal product performance, all key components are sourced from renowned industry brands. This includes the fully

variable-speed DC HIGHLY twin-rotor compressor, the plate heat exchangers from Danfoss or Weyee, and the water pumps from Grundfos or Shimge.

Integrated Terminals

Our product features a specially designed 35-position terminal block, which integrates most of the wiring into a plug-and-play
terminal. This design not only facilitates easy installation and maintenance for users but also effectively separates high voltage
and low voltage systems for enhanced safety and convenience.

Whisper-Quiet Operation

Our product achieves optimal noise reduction with a super quiet chamber that encloses the compressor, pump, and piping using metal
panels lined with sound-absorbing cotton. Combined with notched fan blades, this design lowers noise to just 40dB(A) at 1 meter.

Details Images

Product Packaging

Product Parameters

Model

GSHVSH-6AA1

GSHVSH-8AA1

GSHVSH-10AA1

GSHVSH-12AA1

GSHVSH-16AA1

GSHVSH-18AA1

Power Supply

220~240V/1ph/50Hz

Heating Capacity(Max.)(A7/6℃, W30/35℃)

Heating Capacity(kW)

6.07

(2.63~9.10)

8.11

(3.57~12.29)

10.25

(4.39~13.50)

11.98

(4.39~15.45)

16.20
(6.17~18.51)

17.60

(6.50~22.00)

Power Input(kW)

1.19

(0.54~2.28)

1.60

(0.74~3.17)

2.07

(0.89~3.55)

2.45

(0.89~4.06)

3.38

(1.26~4.83)

3.62

(1.35~5.88)

COP

5.20

(4.20~5.40)

5.07

(4.10~5.35)

4.95

(3.90~5.30)

4.89

(3.85~5.20)

4.79

(3.75~5.00)

4.86

(3.82~5.30)

Heating Capacity(Max.)(A7/6℃ W47/55℃)

Heating Capacity(kW)

5.99

(2.99~8.19)

8.11

(3.65~19.96)

10.07

(3.85~11.75)

11.55

(3.83~13.35)

15.89

(5.75~17.20)

17.85

(5.45~18.89)

Power Inout(kW)

1.87

(1.03~2.92)

2.65

(1.11~3.87)

3.12

(1.20~4.35)

3.71

(1.20~5.03)

5.30

(1.81~5.84)

5.88

(2.15~6.85)

COP

3.20

(2.90~3.46)

3.18

(2.83~3.45)

3.23

(2.75~3.57)

3.11

(2.65~3.57)

3.00

(2.83~3.45)

4.86

(3.82~5.30)

Cooling Capacity(Max.)(A35/24℃, W12/7℃)

Cooling Capacity(kW)

5.00

(1.38~5.70)

7.10

(1.44~8.11)

8.50

(3.65~9.45)

10.00

(3.65~11.04)

13.00

(4.03~13.51)

17.85

(5.45~18.89)

Power Input(kW)

1.77

(0.67~2.44)

2.51

(0.90~3.20)

3.01

(1.12~3.51)

3.68

(1.12~3.97)

4.60

(1.45~5.03)

5.88

(2.15~6.85)

EER

2.82

(2.03~3.20)

2.83

(2.00~3.15)

2.82

(2.00~3.10)

2.72

(1.95~3.00)

2.83

(1.98~3.05)

3.03

(2.64~3.57)

General Data

ErP Level(Outlet water temp. at 35℃/55℃)

A+++/A+++

Rated Power Input(kW)

3.6

4.65

5.05

5.45

6.95

7.5

Rated Current Input(A)

15.0

20.4

23.0

25.0

30.5

35.0

Refrigerant

R290

Rated Water Flow(m³/h)

1.00

1.37

1.7

2.06

2.75

3.1

Water Pressure Drop(kPa)

Max. Outlet Water Temp.(℃)

Operating Temp. Range(Heating Mode)(℃)

-25~45

Operating Temp. Range(Cooling Mode)(℃)

16~45

Sound Pressure at 1m distance

(39~51)

(39~52)

(39~55)

（39~55）

Water Piping Connections(inch)

G5/4

Net Weight(kg)

110

125

145

190

220

Gross Weight(kg)

115

135

165

220

240

Net Dimensions(L*D*H)(mm)

1290*460*955

1320*500*1094

1450*500*1005

1190*500*1515

Packed Dimensions(L*D*H)*(mm)

1320*500*1094

1520*540*1140

1220*540*1640

Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data.

Model	GSHVTH-10AA1	GSHVTH-12AA1	GSHVTH-16AA1	GSHVTH-18AA1	GSHVTH-24AA1
Power Supply	380~415V/3ph/50Hz
Heating Capacity(Max.)(A7/6℃, W30/35℃)
Heating Capacity(kW)	10.25 (4.39~13.50)	11.98 (4.39~15.45)	16.20 (6.17~18.51)	17.60 (6.50~22.00)	24.06 (9.63~29.13)
Power Input(kW)	2.07 (0.89~3.55)	2.45 (0.89~4.06)	3.38 (1.26~4.83)	3.62 (1.35~5.88)	4.96 (2.00~7.82)
COP	4.95 (3.90~5.30)	4.89 (3.85~5.20)	4.79 (3.75~5.00)	4.86 (3.82~5.30)	4.85 (3.86~5.30)
Heating Capacity(Max.)(A7/6℃, W47/55℃)
Heating Capacity(kW)	10.07 (3.85~11.75)	11.55 (3.85~13.35)	15.89 (5.75~17.20)	17.85 (5.45~18.89)	23.85 (8.45~25.89)
Power Input(kW)	3.12 (1.20~4.35)	3.71 (1.20~5.03)	5.30 (1.81~5.84)	5.88 (2.15~6.85)	8.01 (2.86~9.12)
COP	3.23 (2.75~3.57)	3.11 (2.65~3.57)	3.00 (2.83~3.45)	3.03 (2.64~3.57)	2.98 (2.84~3.57)
Cooling Capacity(Max.)(A35/24℃, W12/7℃)
Cooling Capacity(kW)	8.50 (3.65~9.45)	10.00 (3.65~11.04)	13.00 (4.03~13.51)	15.00 (4.55~17.20)	17.00 (6.15~19.50)
Power Input(kW)	3.01 (1.12~3.51)	3.68 (1.12~3.97)	4.60 (1.45~5.03)	5.52 (1.85~7.31)	6.14 (2.50~9.75)
EER	2.82 (2.00~3.10)	2.72 (1.95~3.00	2.83 (1.98~3.05)	2.72 (1.96~2.98)	2.77 (2.03~3.00)
General Data
ErP Level(Outlet Water Temp. at 35℃/55℃)	A+++/A+++
Rated Power Input(kW)	5.05	5.86	6.95	10.52	12.52
Rated Current Input(kW)	8.5	10.0	11.7	17.3	19.5
Refrigerant	R290
Rated Water Flow(m³/h)	1.7	2.06	2.75	3.1	4.2
Water Pressure Drop(kPa)	20	20	55	55	60
Max. Outlet Water Temp.(℃)	75
Operating Temp. Range(Heating Mode)(℃)	-25~45
Operating Temp. Range(Cooling Mode)(℃)	16~45
Sound Pressure at 1m distance(dB(A))	44 (39~52)	46 (39~52)	48 (39~55)	49 (39~55)	52 (50~60)
Water Piping Connections(inch)	G1	G1	G5/4	G5/4	G3/2
Net Weight(kg)	145	145	190	220	220
Gross Weight(kg)	165	165	220	240	240
Net Dimensions(LDH)(mm)	1290460955	1290460955	14905001005	11905001515	11905001515
Packed Dimensions(LDH)(mm)	13205001094	13205001094	15205401140	12205401640	12205401640
Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data.

Online Visit

Manufacturing Technique

Company Profile

GOODHEAT is a high-tech enterprise under GOODWE, focusing on the development, manufacturing and sales of heat pump products. Located in Shunde District, Foshan City, Guangdong Province, the hinterland of the Pearl River Delta, the company is committed to providing global users with high-standard heat pump products and thermal energy supply services that are green, sustainable, energy-efficient, reliable and quiet.
Business philosophy: providing GOODHEAT for global users is the only mission for the survival of the enterprise. The mainproducts are divided into three categories: heating heat pump products, hot water heat pump products, and swimming pool heat pump products.The product capacity range covers 3kW-500kW heating capacity, which can effectively meet the heating, hot water, and swimming pool heating needs of global household users and industrial and commercial users. Four international-level explosion-proof laboratories that meet European standards, American standards, Australian standards, and national standards are equipped, covering the development and verification of 3kW-500kW heating capacity products. Five new high-standard heat pump automation production lines have been invested and built, which are globally leading.
The company upholds the concept of empowering the green earth with science and technology, harmonizing life and work, and promoting the symbiotic relationship between products and nature.
FOCUS ON GOOD HEAT PUMP

FOCUS ON GOOD HEAT

FAQ

Q1: Are you a manufacturer or trading company? How can I trust your company?

Q2: Can you provide OEM/ODM service?

A: Yes, GOODHEAT offers OEM/ODM services. We have our own sheet metal production line and powder coating line, ensuring customized solutions and high-quality production tailored to your needs.

Q3: Do you have technical support?

A: We have a professional technical team standby for you 7*24 hours.

Q4: Can you help to calculate the best logistics and transportation solution?

A: Yes, our professional logistics team will help you arrange cost-effective shipping services, allowing you to ship quickly and at a lower cost. Normally we recommend shipping by FCL.

Q5: What is your lead time?

A: About 35-40 days upon deposit payment and confirmation of artwrok file.

Q6: Can you provide mounting accessories with the equipment?

A: Yes of course. This is one of our standard services and we can calculate and quote the installation kit you require.Note: Most of our customers prefer to ship the equipment and installation materials together, we specialize in doing this with good packaging methods.

Q7: How about the packaging?

A: Carton packaging, different logos can be customized according to customer requirements.

Q8: What is the payment term?

A: Usually payment is by T/T.

In stock

Receives in 6 days.

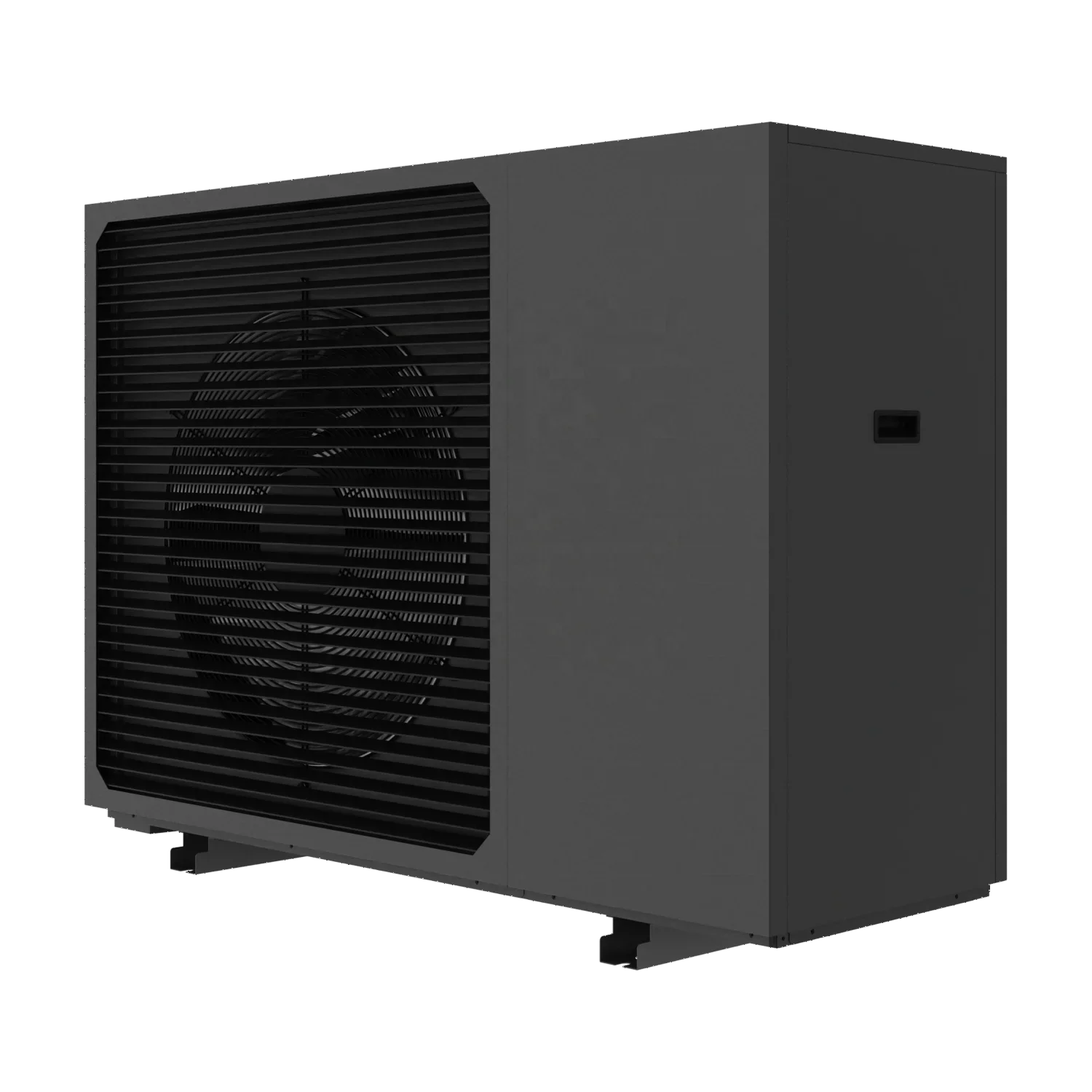

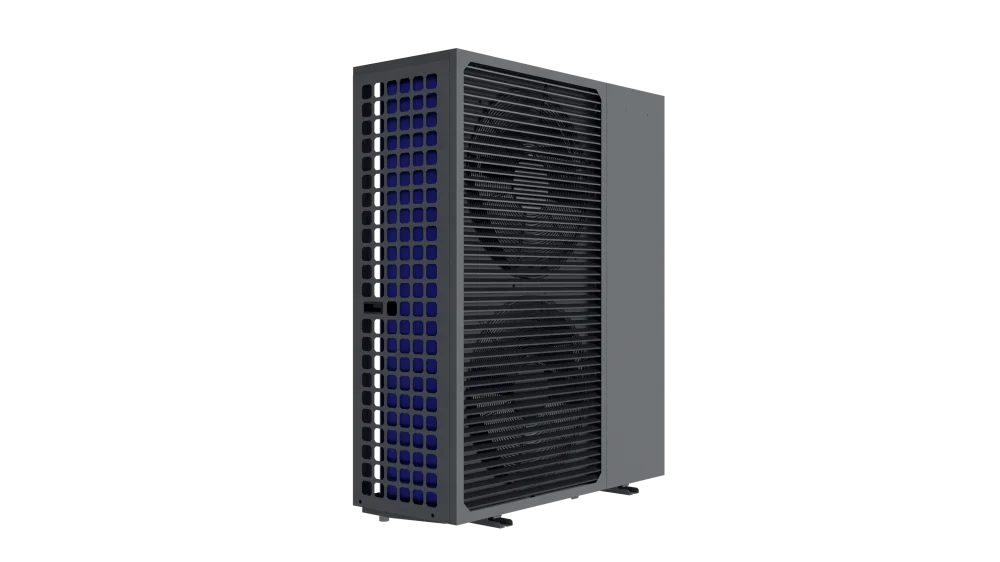

R290 10kW WiFi 4G Monoblock Electric Heat Pump for House Use Heating Cooling & Domestic Hot Water in French Operating

icrush-schmuck

R290 10kW WiFi 4G Monoblock Electric Heat Pump for House Use Heating Cooling & Domestic Hot Water in French Operating

(0)

€2.316,00

Product Description

Scalable Integration

Our system supports cascading up to 16 heat pumps, offering unparalleled scalability and flexibility for large installations. This

powerful feature ensures that even the most demanding heating requirements can be met with ease, providing a seamless and

efficient solution for both residential applications.

Safety First

Given the flammable and explosive nature of R290 refrigerant, our unit prioritizes user safety with its integrated refrigerant

leak sensor ,automated pressure relief valve and gas separator(optional). These advanced features ensure the immediate detection

of any leaks, while simultaneously preventing the refrigerant from contaminating the water system.

Eco-friendly

Using eco-friendly R290 refrigerant, with a Global Warming Potential (GWP) as low as 3, our heat pump delivers higher heating

efficiency and an environmentally friendly solution. It effortlessly heats even in temperatures as low as -25°C.

Superior Efficiency

Achieving an impressive A+++ energy efficiency rating, our heat pump excels at both 35°C and 55°C, ensuring remarkable energy

savings. This ultra-efficient performance not only reduces electricity consumption significantly but also provides optimal heating

comfort, making it an environmentally friendly and cost-effective solution for your home.

Premium Components

To ensure optimal product performance, all key components are sourced from renowned industry brands. This includes the fully

variable-speed DC HIGHLY twin-rotor compressor, the plate heat exchangers from Danfoss or Weyee, and the water pumps from Grundfos or Shimge.

Integrated Terminals

Our product features a specially designed 35-position terminal block, which integrates most of the wiring into a plug-and-play
terminal. This design not only facilitates easy installation and maintenance for users but also effectively separates high voltage
and low voltage systems for enhanced safety and convenience.

Whisper-Quiet Operation

Details Images

Product Packaging

Product Parameters

Model

GSHVSH-6AA1

GSHVSH-8AA1

GSHVSH-10AA1

GSHVSH-12AA1

GSHVSH-16AA1

GSHVSH-18AA1

Power Supply

220~240V/1ph/50Hz

Heating Capacity(Max.)(A7/6℃, W30/35℃)

Heating Capacity(kW)

6.07

(2.63~9.10)

8.11

(3.57~12.29)

10.25

(4.39~13.50)

11.98

(4.39~15.45)

16.20
(6.17~18.51)

17.60

(6.50~22.00)

Power Input(kW)

1.19

(0.54~2.28)

1.60

(0.74~3.17)

2.07

(0.89~3.55)

2.45

(0.89~4.06)

3.38

(1.26~4.83)

3.62

(1.35~5.88)

COP

5.20

(4.20~5.40)

5.07

(4.10~5.35)

4.95

(3.90~5.30)

4.89

(3.85~5.20)

4.79

(3.75~5.00)

4.86

(3.82~5.30)

Heating Capacity(Max.)(A7/6℃ W47/55℃)

Heating Capacity(kW)

5.99

(2.99~8.19)

8.11

(3.65~19.96)

10.07

(3.85~11.75)

11.55

(3.83~13.35)

15.89

(5.75~17.20)

17.85

(5.45~18.89)

Power Inout(kW)

1.87

(1.03~2.92)

2.65

(1.11~3.87)

3.12

(1.20~4.35)

3.71

(1.20~5.03)

5.30

(1.81~5.84)

5.88

(2.15~6.85)

COP

3.20

(2.90~3.46)

3.18

(2.83~3.45)

3.23

(2.75~3.57)

3.11

(2.65~3.57)

3.00

(2.83~3.45)

4.86

(3.82~5.30)

Cooling Capacity(Max.)(A35/24℃, W12/7℃)

Cooling Capacity(kW)

5.00

(1.38~5.70)

7.10

(1.44~8.11)

8.50

(3.65~9.45)

10.00

(3.65~11.04)

13.00

(4.03~13.51)

17.85

(5.45~18.89)

Power Input(kW)

1.77

(0.67~2.44)

2.51

(0.90~3.20)

3.01

(1.12~3.51)

3.68

(1.12~3.97)

4.60

(1.45~5.03)

5.88

(2.15~6.85)

EER

2.82

(2.03~3.20)

2.83

(2.00~3.15)

2.82

(2.00~3.10)

2.72

(1.95~3.00)

2.83

(1.98~3.05)

3.03

(2.64~3.57)

General Data

ErP Level(Outlet water temp. at 35℃/55℃)

A+++/A+++

Rated Power Input(kW)

3.6

4.65

5.05

5.45

6.95

7.5

Rated Current Input(A)

15.0

20.4

23.0

25.0

30.5

35.0

Refrigerant

R290

Rated Water Flow(m³/h)

1.00

1.37

1.7

2.06

2.75

3.1

Water Pressure Drop(kPa)

Max. Outlet Water Temp.(℃)

Operating Temp. Range(Heating Mode)(℃)

-25~45

Operating Temp. Range(Cooling Mode)(℃)

16~45

Sound Pressure at 1m distance

(39~51)

(39~52)

(39~55)

（39~55）

Water Piping Connections(inch)

G5/4

Net Weight(kg)

110

125

145

190

220

Gross Weight(kg)

115

135

165

220

240

Net Dimensions(L*D*H)(mm)

1290*460*955

1320*500*1094

1450*500*1005

1190*500*1515

Packed Dimensions(L*D*H)*(mm)

1320*500*1094

1520*540*1140

1220*540*1640

Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data.

Model	GSHVTH-10AA1	GSHVTH-12AA1	GSHVTH-16AA1	GSHVTH-18AA1	GSHVTH-24AA1
Power Supply	380~415V/3ph/50Hz
Heating Capacity(Max.)(A7/6℃, W30/35℃)
Heating Capacity(kW)	10.25 (4.39~13.50)	11.98 (4.39~15.45)	16.20 (6.17~18.51)	17.60 (6.50~22.00)	24.06 (9.63~29.13)
Power Input(kW)	2.07 (0.89~3.55)	2.45 (0.89~4.06)	3.38 (1.26~4.83)	3.62 (1.35~5.88)	4.96 (2.00~7.82)
COP	4.95 (3.90~5.30)	4.89 (3.85~5.20)	4.79 (3.75~5.00)	4.86 (3.82~5.30)	4.85 (3.86~5.30)
Heating Capacity(Max.)(A7/6℃, W47/55℃)
Heating Capacity(kW)	10.07 (3.85~11.75)	11.55 (3.85~13.35)	15.89 (5.75~17.20)	17.85 (5.45~18.89)	23.85 (8.45~25.89)
Power Input(kW)	3.12 (1.20~4.35)	3.71 (1.20~5.03)	5.30 (1.81~5.84)	5.88 (2.15~6.85)	8.01 (2.86~9.12)
COP	3.23 (2.75~3.57)	3.11 (2.65~3.57)	3.00 (2.83~3.45)	3.03 (2.64~3.57)	2.98 (2.84~3.57)
Cooling Capacity(Max.)(A35/24℃, W12/7℃)
Cooling Capacity(kW)	8.50 (3.65~9.45)	10.00 (3.65~11.04)	13.00 (4.03~13.51)	15.00 (4.55~17.20)	17.00 (6.15~19.50)
Power Input(kW)	3.01 (1.12~3.51)	3.68 (1.12~3.97)	4.60 (1.45~5.03)	5.52 (1.85~7.31)	6.14 (2.50~9.75)
EER	2.82 (2.00~3.10)	2.72 (1.95~3.00	2.83 (1.98~3.05)	2.72 (1.96~2.98)	2.77 (2.03~3.00)
General Data
ErP Level(Outlet Water Temp. at 35℃/55℃)	A+++/A+++
Rated Power Input(kW)	5.05	5.86	6.95	10.52	12.52
Rated Current Input(kW)	8.5	10.0	11.7	17.3	19.5
Refrigerant	R290
Rated Water Flow(m³/h)	1.7	2.06	2.75	3.1	4.2
Water Pressure Drop(kPa)	20	20	55	55	60
Max. Outlet Water Temp.(℃)	75
Operating Temp. Range(Heating Mode)(℃)	-25~45
Operating Temp. Range(Cooling Mode)(℃)	16~45
Sound Pressure at 1m distance(dB(A))	44 (39~52)	46 (39~52)	48 (39~55)	49 (39~55)	52 (50~60)
Water Piping Connections(inch)	G1	G1	G5/4	G5/4	G3/2
Net Weight(kg)	145	145	190	220	220
Gross Weight(kg)	165	165	220	240	240
Net Dimensions(LDH)(mm)	1290460955	1290460955	14905001005	11905001515	11905001515
Packed Dimensions(LDH)(mm)	13205001094	13205001094	15205401140	12205401640	12205401640
Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data.

Online Visit

Manufacturing Technique

Company Profile

GOODHEAT is a high-tech enterprise under GOODWE, focusing on the development, manufacturing and sales of heat pump products. Located in Shunde District, Foshan City, Guangdong Province, the hinterland of the Pearl River Delta, the company is committed to providing global users with high-standard heat pump products and thermal energy supply services that are green, sustainable, energy-efficient, reliable and quiet.
Business philosophy: providing GOODHEAT for global users is the only mission for the survival of the enterprise. The mainproducts are divided into three categories: heating heat pump products, hot water heat pump products, and swimming pool heat pump products.The product capacity range covers 3kW-500kW heating capacity, which can effectively meet the heating, hot water, and swimming pool heating needs of global household users and industrial and commercial users. Four international-level explosion-proof laboratories that meet European standards, American standards, Australian standards, and national standards are equipped, covering the development and verification of 3kW-500kW heating capacity products. Five new high-standard heat pump automation production lines have been invested and built, which are globally leading.
The company upholds the concept of empowering the green earth with science and technology, harmonizing life and work, and promoting the symbiotic relationship between products and nature.
FOCUS ON GOOD HEAT PUMP

FOCUS ON GOOD HEAT

FAQ

Q1: Are you a manufacturer or trading company? How can I trust your company?

Q2: Can you provide OEM/ODM service?

A: Yes, GOODHEAT offers OEM/ODM services. We have our own sheet metal production line and powder coating line, ensuring customized solutions and high-quality production tailored to your needs.

Q3: Do you have technical support?

A: We have a professional technical team standby for you 7*24 hours.

Q4: Can you help to calculate the best logistics and transportation solution?

A: Yes, our professional logistics team will help you arrange cost-effective shipping services, allowing you to ship quickly and at a lower cost. Normally we recommend shipping by FCL.

Q5: What is your lead time?

A: About 35-40 days upon deposit payment and confirmation of artwrok file.

Q6: Can you provide mounting accessories with the equipment?

Q7: How about the packaging?

A: Carton packaging, different logos can be customized according to customer requirements.

Q8: What is the payment term?

A: Usually payment is by T/T.

In stock

Receives in 6 days.

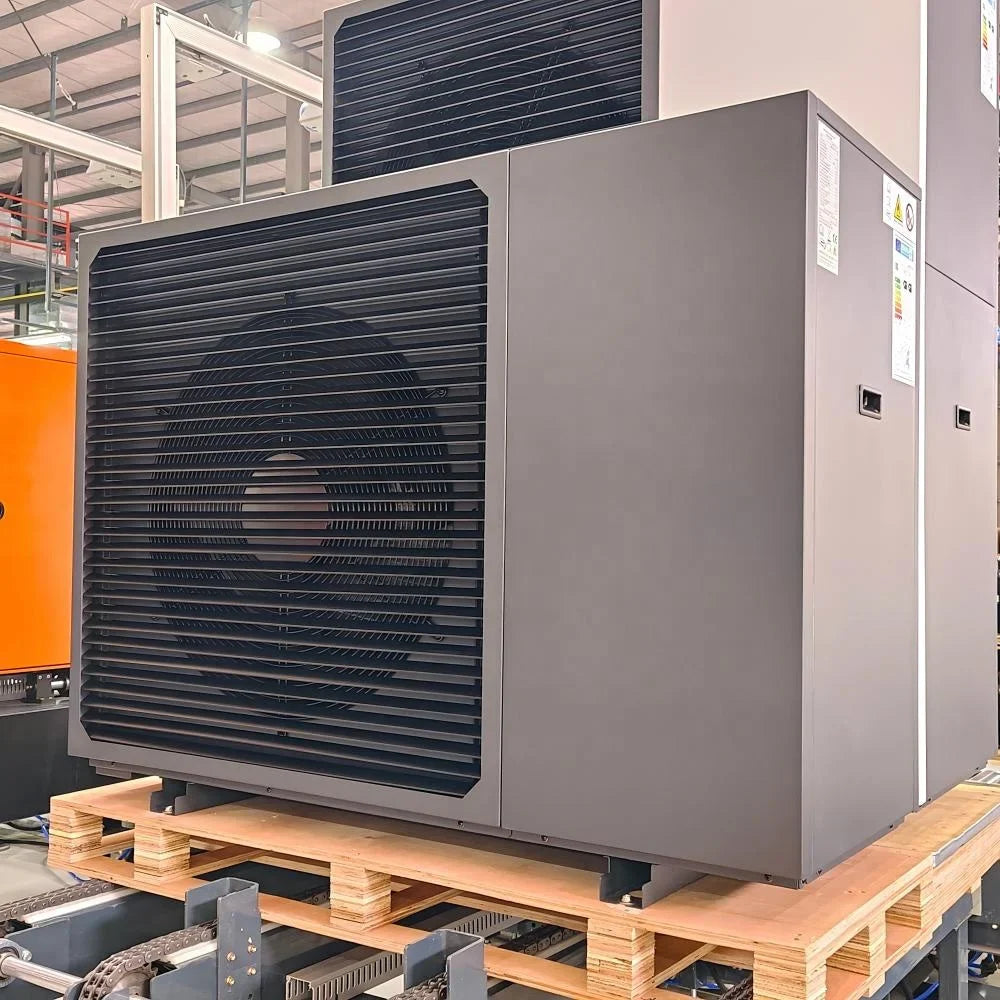

R290 12kW WiFi 4G Monobloc Air to Water Heat Pump High Efficiency Electric Double A+++ with Metal Housing for House Use

icrush-schmuck

R290 12kW WiFi 4G Monobloc Air to Water Heat Pump High Efficiency Electric Double A+++ with Metal Housing for House Use

(0)

€2.365,00

Product Description

Scalable Integration

Our system supports cascading up to 16 heat pumps, offering unparalleled scalability and flexibility for large installations. This

powerful feature ensures that even the most demanding heating requirements can be met with ease, providing a seamless and

efficient solution for both residential applications.

Safety First

Given the flammable and explosive nature of R290 refrigerant, our unit prioritizes user safety with its integrated refrigerant

leak sensor ,automated pressure relief valve and gas separator(optional). These advanced features ensure the immediate detection

of any leaks, while simultaneously preventing the refrigerant from contaminating the water system.

Eco-friendly

Using eco-friendly R290 refrigerant, with a Global Warming Potential (GWP) as low as 3, our heat pump delivers higher heating

efficiency and an environmentally friendly solution. It effortlessly heats even in temperatures as low as -25°C.

Superior Efficiency

Achieving an impressive A+++ energy efficiency rating, our heat pump excels at both 35°C and 55°C, ensuring remarkable energy

savings. This ultra-efficient performance not only reduces electricity consumption significantly but also provides optimal heating

comfort, making it an environmentally friendly and cost-effective solution for your home.

Premium Components

To ensure optimal product performance, all key components are sourced from renowned industry brands. This includes the fully

variable-speed DC HIGHLY twin-rotor compressor, the plate heat exchangers from Danfoss or Weyee, and the water pumps from Grundfos or Shimge.

Integrated Terminals

Our product features a specially designed 35-position terminal block, which integrates most of the wiring into a plug-and-play
terminal. This design not only facilitates easy installation and maintenance for users but also effectively separates high voltage
and low voltage systems for enhanced safety and convenience.

Whisper-Quiet Operation

Details Images

Product Packaging

Product Parameters

Model

GSHVSH-6AA1

GSHVSH-8AA1

GSHVSH-10AA1

GSHVSH-12AA1

GSHVSH-16AA1

GSHVSH-18AA1

Power Supply

220~240V/1ph/50Hz

Heating Capacity(Max.)(A7/6℃, W30/35℃)

Heating Capacity(kW)

6.07

(2.63~9.10)

8.11

(3.57~12.29)

10.25

(4.39~13.50)

11.98

(4.39~15.45)

16.20
(6.17~18.51)

17.60

(6.50~22.00)

Power Input(kW)

1.19

(0.54~2.28)

1.60

(0.74~3.17)

2.07

(0.89~3.55)

2.45

(0.89~4.06)

3.38

(1.26~4.83)

3.62

(1.35~5.88)

COP

5.20

(4.20~5.40)

5.07

(4.10~5.35)

4.95

(3.90~5.30)

4.89

(3.85~5.20)

4.79

(3.75~5.00)

4.86

(3.82~5.30)

Heating Capacity(Max.)(A7/6℃ W47/55℃)

Heating Capacity(kW)

5.99

(2.99~8.19)

8.11

(3.65~19.96)

10.07

(3.85~11.75)

11.55

(3.83~13.35)

15.89

(5.75~17.20)

17.85

(5.45~18.89)

Power Inout(kW)

1.87

(1.03~2.92)

2.65

(1.11~3.87)

3.12

(1.20~4.35)

3.71

(1.20~5.03)

5.30

(1.81~5.84)

5.88

(2.15~6.85)

COP

3.20

(2.90~3.46)

3.18

(2.83~3.45)

3.23

(2.75~3.57)

3.11

(2.65~3.57)

3.00

(2.83~3.45)

4.86

(3.82~5.30)

Cooling Capacity(Max.)(A35/24℃, W12/7℃)

Cooling Capacity(kW)

5.00

(1.38~5.70)

7.10

(1.44~8.11)

8.50

(3.65~9.45)

10.00

(3.65~11.04)

13.00

(4.03~13.51)

17.85

(5.45~18.89)

Power Input(kW)

1.77

(0.67~2.44)

2.51

(0.90~3.20)

3.01

(1.12~3.51)

3.68

(1.12~3.97)

4.60

(1.45~5.03)

5.88

(2.15~6.85)

EER

2.82

(2.03~3.20)

2.83

(2.00~3.15)

2.82

(2.00~3.10)

2.72

(1.95~3.00)

2.83

(1.98~3.05)

3.03

(2.64~3.57)

General Data

ErP Level(Outlet water temp. at 35℃/55℃)

A+++/A+++

Rated Power Input(kW)

3.6

4.65

5.05

5.45

6.95

7.5

Rated Current Input(A)

15.0

20.4

23.0

25.0

30.5

35.0

Refrigerant

R290

Rated Water Flow(m³/h)

1.00

1.37

1.7

2.06

2.75

3.1

Water Pressure Drop(kPa)

Max. Outlet Water Temp.(℃)

Operating Temp. Range(Heating Mode)(℃)

-25~45

Operating Temp. Range(Cooling Mode)(℃)

16~45

Sound Pressure at 1m distance

(39~51)

(39~52)

(39~55)

（39~55）

Water Piping Connections(inch)

G5/4

Net Weight(kg)

110

125

145

190

220

Gross Weight(kg)

115

135

165

220

240

Net Dimensions(L*D*H)(mm)

1290*460*955

1320*500*1094

1450*500*1005

1190*500*1515

Packed Dimensions(L*D*H)*(mm)

1320*500*1094

1520*540*1140

1220*540*1640

Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data.

Model	GSHVTH-10AA1	GSHVTH-12AA1	GSHVTH-16AA1	GSHVTH-18AA1	GSHVTH-24AA1
Power Supply	380~415V/3ph/50Hz
Heating Capacity(Max.)(A7/6℃, W30/35℃)
Heating Capacity(kW)	10.25 (4.39~13.50)	11.98 (4.39~15.45)	16.20 (6.17~18.51)	17.60 (6.50~22.00)	24.06 (9.63~29.13)
Power Input(kW)	2.07 (0.89~3.55)	2.45 (0.89~4.06)	3.38 (1.26~4.83)	3.62 (1.35~5.88)	4.96 (2.00~7.82)
COP	4.95 (3.90~5.30)	4.89 (3.85~5.20)	4.79 (3.75~5.00)	4.86 (3.82~5.30)	4.85 (3.86~5.30)
Heating Capacity(Max.)(A7/6℃, W47/55℃)
Heating Capacity(kW)	10.07 (3.85~11.75)	11.55 (3.85~13.35)	15.89 (5.75~17.20)	17.85 (5.45~18.89)	23.85 (8.45~25.89)
Power Input(kW)	3.12 (1.20~4.35)	3.71 (1.20~5.03)	5.30 (1.81~5.84)	5.88 (2.15~6.85)	8.01 (2.86~9.12)
COP	3.23 (2.75~3.57)	3.11 (2.65~3.57)	3.00 (2.83~3.45)	3.03 (2.64~3.57)	2.98 (2.84~3.57)
Cooling Capacity(Max.)(A35/24℃, W12/7℃)
Cooling Capacity(kW)	8.50 (3.65~9.45)	10.00 (3.65~11.04)	13.00 (4.03~13.51)	15.00 (4.55~17.20)	17.00 (6.15~19.50)
Power Input(kW)	3.01 (1.12~3.51)	3.68 (1.12~3.97)	4.60 (1.45~5.03)	5.52 (1.85~7.31)	6.14 (2.50~9.75)
EER	2.82 (2.00~3.10)	2.72 (1.95~3.00	2.83 (1.98~3.05)	2.72 (1.96~2.98)	2.77 (2.03~3.00)
General Data
ErP Level(Outlet Water Temp. at 35℃/55℃)	A+++/A+++
Rated Power Input(kW)	5.05	5.86	6.95	10.52	12.52
Rated Current Input(kW)	8.5	10.0	11.7	17.3	19.5
Refrigerant	R290
Rated Water Flow(m³/h)	1.7	2.06	2.75	3.1	4.2
Water Pressure Drop(kPa)	20	20	55	55	60
Max. Outlet Water Temp.(℃)	75
Operating Temp. Range(Heating Mode)(℃)	-25~45
Operating Temp. Range(Cooling Mode)(℃)	16~45
Sound Pressure at 1m distance(dB(A))	44 (39~52)	46 (39~52)	48 (39~55)	49 (39~55)	52 (50~60)
Water Piping Connections(inch)	G1	G1	G5/4	G5/4	G3/2
Net Weight(kg)	145	145	190	220	220
Gross Weight(kg)	165	165	220	240	240
Net Dimensions(LDH)(mm)	1290460955	1290460955	14905001005	11905001515	11905001515
Packed Dimensions(LDH)(mm)	13205001094	13205001094	15205401140	12205401640	12205401640
Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data.

Online Visit

Manufacturing Technique

Company Profile

GOODHEAT is a high-tech enterprise under GOODWE, focusing on the development, manufacturing and sales of heat pump products. Located in Shunde District, Foshan City, Guangdong Province, the hinterland of the Pearl River Delta, the company is committed to providing global users with high-standard heat pump products and thermal energy supply services that are green, sustainable, energy-efficient, reliable and quiet.
Business philosophy: providing GOODHEAT for global users is the only mission for the survival of the enterprise. The mainproducts are divided into three categories: heating heat pump products, hot water heat pump products, and swimming pool heat pump products.The product capacity range covers 3kW-500kW heating capacity, which can effectively meet the heating, hot water, and swimming pool heating needs of global household users and industrial and commercial users. Four international-level explosion-proof laboratories that meet European standards, American standards, Australian standards, and national standards are equipped, covering the development and verification of 3kW-500kW heating capacity products. Five new high-standard heat pump automation production lines have been invested and built, which are globally leading.
The company upholds the concept of empowering the green earth with science and technology, harmonizing life and work, and promoting the symbiotic relationship between products and nature.
FOCUS ON GOOD HEAT PUMP

FOCUS ON GOOD HEAT

FAQ

Q1: Are you a manufacturer or trading company? How can I trust your company?

Q2: Can you provide OEM/ODM service?

A: Yes, GOODHEAT offers OEM/ODM services. We have our own sheet metal production line and powder coating line, ensuring customized solutions and high-quality production tailored to your needs.

Q3: Do you have technical support?

A: We have a professional technical team standby for you 7*24 hours.

Q4: Can you help to calculate the best logistics and transportation solution?

A: Yes, our professional logistics team will help you arrange cost-effective shipping services, allowing you to ship quickly and at a lower cost. Normally we recommend shipping by FCL.

Q5: What is your lead time?

A: About 35-40 days upon deposit payment and confirmation of artwrok file.

Q6: Can you provide mounting accessories with the equipment?

Q7: How about the packaging?

A: Carton packaging, different logos can be customized according to customer requirements.

Q8: What is the payment term?

A: Usually payment is by T/T.

In stock

Receives in 6 days.

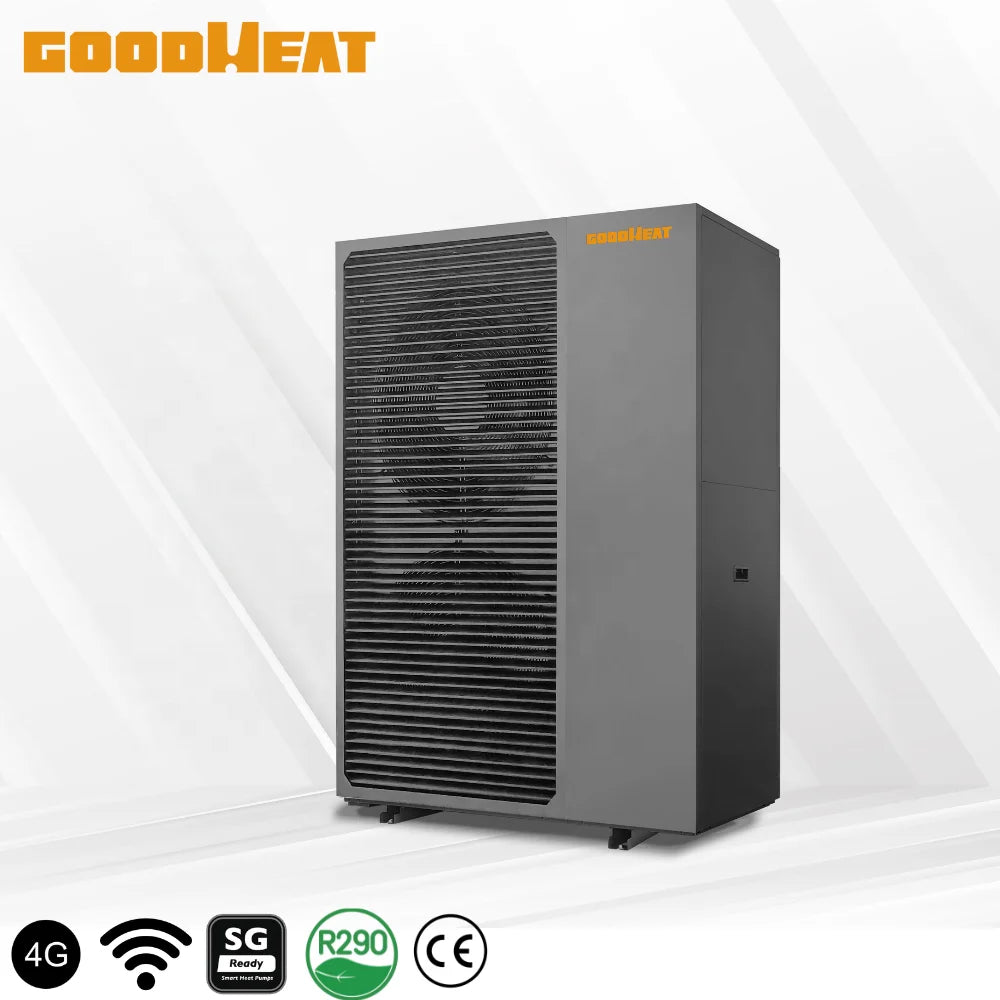

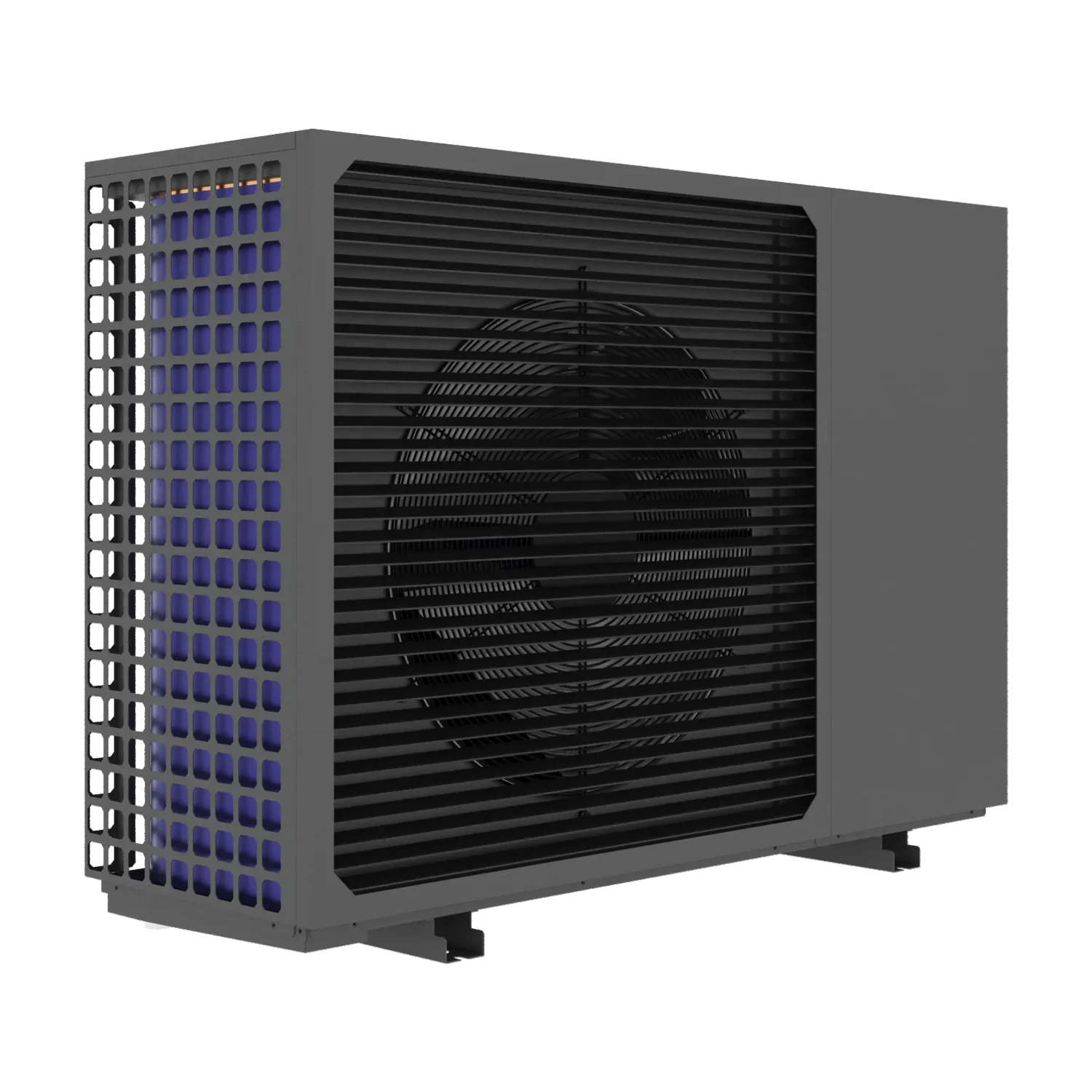

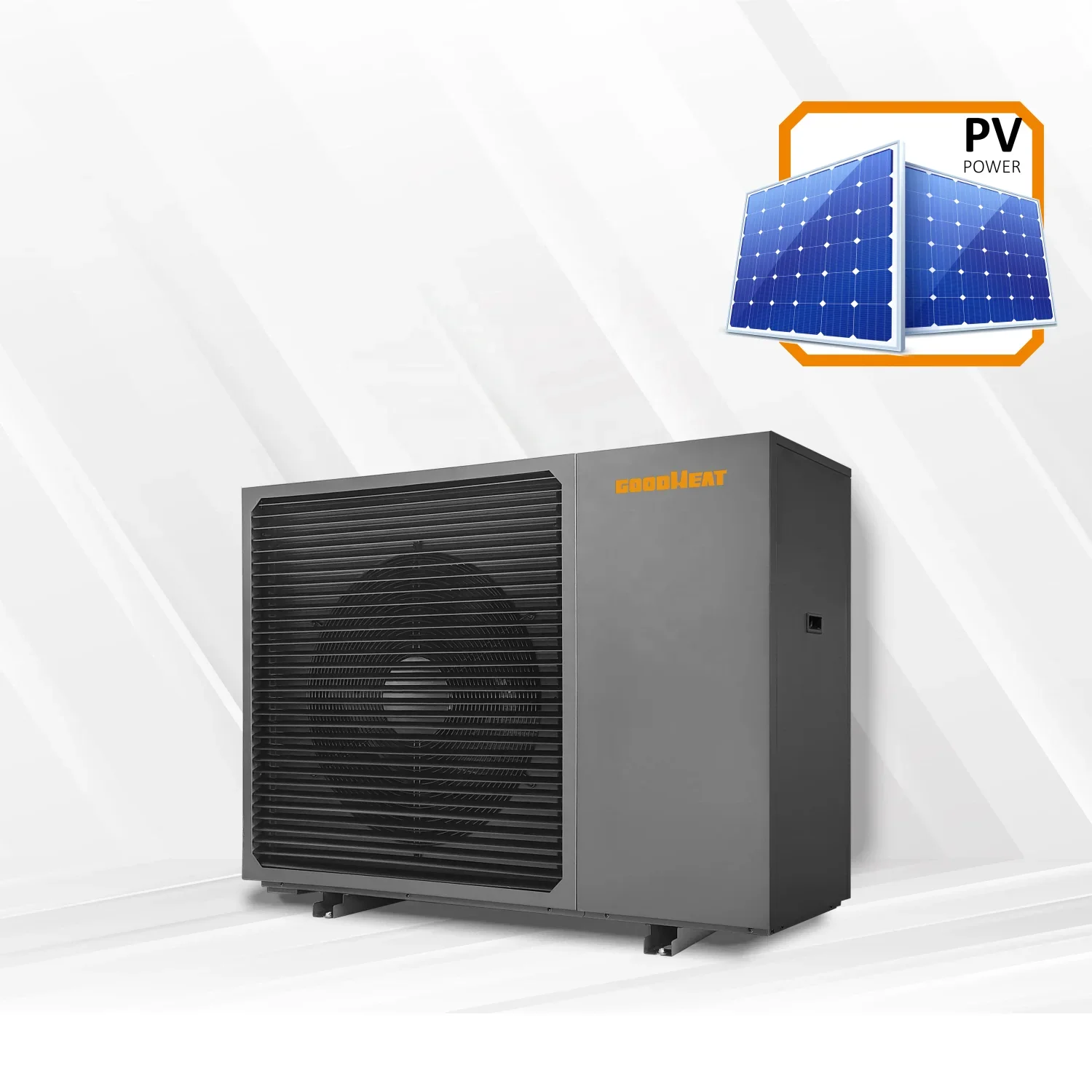

R290 12kW Three Phase DC Inverter Residential Monobloc Air Source Heat Pump WiFi 4G Module Electric Metal Tankless Class A+++

icrush-schmuck

R290 12kW Three Phase DC Inverter Residential Monobloc Air Source Heat Pump WiFi 4G Module Electric Metal Tankless Class A+++

(0)

€2.414,00

Product Description

Scalable Integration

Our system supports cascading up to 16 heat pumps, offering unparalleled scalability and flexibility for large installations. This

powerful feature ensures that even the most demanding heating requirements can be met with ease, providing a seamless and

efficient solution for both residential applications.

Safety First

Given the flammable and explosive nature of R290 refrigerant, our unit prioritizes user safety with its integrated refrigerant

leak sensor ,automated pressure relief valve and gas separator(optional). These advanced features ensure the immediate detection

of any leaks, while simultaneously preventing the refrigerant from contaminating the water system.

Eco-friendly

Using eco-friendly R290 refrigerant, with a Global Warming Potential (GWP) as low as 3, our heat pump delivers higher heating

efficiency and an environmentally friendly solution. It effortlessly heats even in temperatures as low as -25°C.

Superior Efficiency

Achieving an impressive A+++ energy efficiency rating, our heat pump excels at both 35°C and 55°C, ensuring remarkable energy

savings. This ultra-efficient performance not only reduces electricity consumption significantly but also provides optimal heating

comfort, making it an environmentally friendly and cost-effective solution for your home.

Premium Components

To ensure optimal product performance, all key components are sourced from renowned industry brands. This includes the fully

variable-speed DC HIGHLY twin-rotor compressor, the plate heat exchangers from Danfoss or Weyee, and the water pumps from Grundfos or Shimge.

Integrated Terminals

Our product features a specially designed 35-position terminal block, which integrates most of the wiring into a plug-and-play
terminal. This design not only facilitates easy installation and maintenance for users but also effectively separates high voltage
and low voltage systems for enhanced safety and convenience.

Whisper-Quiet Operation

Details Images

Product Packaging

Product Parameters

Model

GSHVSH-6AA1

GSHVSH-8AA1

GSHVSH-10AA1

GSHVSH-12AA1

GSHVSH-16AA1

GSHVSH-18AA1

Power Supply

220~240V/1ph/50Hz

Heating Capacity(Max.)(A7/6℃, W30/35℃)

Heating Capacity(kW)

6.07

(2.63~9.10)

8.11

(3.57~12.29)

10.25

(4.39~13.50)

11.98

(4.39~15.45)

16.20
(6.17~18.51)

17.60

(6.50~22.00)

Power Input(kW)

1.19

(0.54~2.28)

1.60

(0.74~3.17)

2.07

(0.89~3.55)

2.45

(0.89~4.06)

3.38

(1.26~4.83)

3.62

(1.35~5.88)

COP

5.20

(4.20~5.40)

5.07

(4.10~5.35)

4.95

(3.90~5.30)

4.89

(3.85~5.20)

4.79

(3.75~5.00)

4.86

(3.82~5.30)

Heating Capacity(Max.)(A7/6℃ W47/55℃)

Heating Capacity(kW)

5.99

(2.99~8.19)

8.11

(3.65~19.96)

10.07

(3.85~11.75)

11.55

(3.83~13.35)

15.89

(5.75~17.20)

17.85

(5.45~18.89)

Power Inout(kW)

1.87

(1.03~2.92)

2.65

(1.11~3.87)

3.12

(1.20~4.35)

3.71

(1.20~5.03)

5.30

(1.81~5.84)

5.88

(2.15~6.85)

COP

3.20

(2.90~3.46)

3.18

(2.83~3.45)

3.23

(2.75~3.57)

3.11

(2.65~3.57)

3.00

(2.83~3.45)

4.86

(3.82~5.30)

Cooling Capacity(Max.)(A35/24℃, W12/7℃)

Cooling Capacity(kW)

5.00

(1.38~5.70)

7.10

(1.44~8.11)

8.50

(3.65~9.45)

10.00

(3.65~11.04)

13.00

(4.03~13.51)

17.85

(5.45~18.89)

Power Input(kW)

1.77

(0.67~2.44)

2.51

(0.90~3.20)

3.01

(1.12~3.51)

3.68

(1.12~3.97)

4.60

(1.45~5.03)

5.88

(2.15~6.85)

EER

2.82

(2.03~3.20)

2.83

(2.00~3.15)

2.82

(2.00~3.10)

2.72

(1.95~3.00)

2.83

(1.98~3.05)

3.03

(2.64~3.57)

General Data

ErP Level(Outlet water temp. at 35℃/55℃)

A+++/A+++

Rated Power Input(kW)

3.6

4.65

5.05

5.45

6.95

7.5

Rated Current Input(A)

15.0

20.4

23.0

25.0

30.5

35.0

Refrigerant

R290

Rated Water Flow(m³/h)

1.00

1.37

1.7

2.06

2.75

3.1

Water Pressure Drop(kPa)

Max. Outlet Water Temp.(℃)

Operating Temp. Range(Heating Mode)(℃)

-25~45

Operating Temp. Range(Cooling Mode)(℃)

16~45

Sound Pressure at 1m distance

(39~51)

(39~52)

(39~55)

（39~55）

Water Piping Connections(inch)

G5/4

Net Weight(kg)

110

125

145

190

220

Gross Weight(kg)

115

135

165

220

240

Net Dimensions(L*D*H)(mm)

1290*460*955

1320*500*1094

1450*500*1005

1190*500*1515

Packed Dimensions(L*D*H)*(mm)

1320*500*1094

1520*540*1140

1220*540*1640

Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data.

Model	GSHVTH-10AA1	GSHVTH-12AA1	GSHVTH-16AA1	GSHVTH-18AA1	GSHVTH-24AA1
Power Supply	380~415V/3ph/50Hz
Heating Capacity(Max.)(A7/6℃, W30/35℃)
Heating Capacity(kW)	10.25 (4.39~13.50)	11.98 (4.39~15.45)	16.20 (6.17~18.51)	17.60 (6.50~22.00)	24.06 (9.63~29.13)
Power Input(kW)	2.07 (0.89~3.55)	2.45 (0.89~4.06)	3.38 (1.26~4.83)	3.62 (1.35~5.88)	4.96 (2.00~7.82)
COP	4.95 (3.90~5.30)	4.89 (3.85~5.20)	4.79 (3.75~5.00)	4.86 (3.82~5.30)	4.85 (3.86~5.30)
Heating Capacity(Max.)(A7/6℃, W47/55℃)
Heating Capacity(kW)	10.07 (3.85~11.75)	11.55 (3.85~13.35)	15.89 (5.75~17.20)	17.85 (5.45~18.89)	23.85 (8.45~25.89)
Power Input(kW)	3.12 (1.20~4.35)	3.71 (1.20~5.03)	5.30 (1.81~5.84)	5.88 (2.15~6.85)	8.01 (2.86~9.12)
COP	3.23 (2.75~3.57)	3.11 (2.65~3.57)	3.00 (2.83~3.45)	3.03 (2.64~3.57)	2.98 (2.84~3.57)
Cooling Capacity(Max.)(A35/24℃, W12/7℃)
Cooling Capacity(kW)	8.50 (3.65~9.45)	10.00 (3.65~11.04)	13.00 (4.03~13.51)	15.00 (4.55~17.20)	17.00 (6.15~19.50)
Power Input(kW)	3.01 (1.12~3.51)	3.68 (1.12~3.97)	4.60 (1.45~5.03)	5.52 (1.85~7.31)	6.14 (2.50~9.75)
EER	2.82 (2.00~3.10)	2.72 (1.95~3.00	2.83 (1.98~3.05)	2.72 (1.96~2.98)	2.77 (2.03~3.00)
General Data
ErP Level(Outlet Water Temp. at 35℃/55℃)	A+++/A+++
Rated Power Input(kW)	5.05	5.86	6.95	10.52	12.52
Rated Current Input(kW)	8.5	10.0	11.7	17.3	19.5
Refrigerant	R290
Rated Water Flow(m³/h)	1.7	2.06	2.75	3.1	4.2
Water Pressure Drop(kPa)	20	20	55	55	60
Max. Outlet Water Temp.(℃)	75
Operating Temp. Range(Heating Mode)(℃)	-25~45
Operating Temp. Range(Cooling Mode)(℃)	16~45
Sound Pressure at 1m distance(dB(A))	44 (39~52)	46 (39~52)	48 (39~55)	49 (39~55)	52 (50~60)
Water Piping Connections(inch)	G1	G1	G5/4	G5/4	G3/2
Net Weight(kg)	145	145	190	220	220
Gross Weight(kg)	165	165	220	240	240
Net Dimensions(LDH)(mm)	1290460955	1290460955	14905001005	11905001515	11905001515
Packed Dimensions(LDH)(mm)	13205001094	13205001094	15205401140	12205401640	12205401640
Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data.

Online Visit

Manufacturing Technique

Company Profile

GOODHEAT is a high-tech enterprise under GOODWE, focusing on the development, manufacturing and sales of heat pump products. Located in Shunde District, Foshan City, Guangdong Province, the hinterland of the Pearl River Delta, the company is committed to providing global users with high-standard heat pump products and thermal energy supply services that are green, sustainable, energy-efficient, reliable and quiet.
Business philosophy: providing GOODHEAT for global users is the only mission for the survival of the enterprise. The mainproducts are divided into three categories: heating heat pump products, hot water heat pump products, and swimming pool heat pump products.The product capacity range covers 3kW-500kW heating capacity, which can effectively meet the heating, hot water, and swimming pool heating needs of global household users and industrial and commercial users. Four international-level explosion-proof laboratories that meet European standards, American standards, Australian standards, and national standards are equipped, covering the development and verification of 3kW-500kW heating capacity products. Five new high-standard heat pump automation production lines have been invested and built, which are globally leading.
The company upholds the concept of empowering the green earth with science and technology, harmonizing life and work, and promoting the symbiotic relationship between products and nature.
FOCUS ON GOOD HEAT PUMP

FOCUS ON GOOD HEAT

FAQ

Q1: Are you a manufacturer or trading company? How can I trust your company?

Q2: Can you provide OEM/ODM service?

A: Yes, GOODHEAT offers OEM/ODM services. We have our own sheet metal production line and powder coating line, ensuring customized solutions and high-quality production tailored to your needs.

Q3: Do you have technical support?

A: We have a professional technical team standby for you 7*24 hours.

Q4: Can you help to calculate the best logistics and transportation solution?

A: Yes, our professional logistics team will help you arrange cost-effective shipping services, allowing you to ship quickly and at a lower cost. Normally we recommend shipping by FCL.

Q5: What is your lead time?

A: About 35-40 days upon deposit payment and confirmation of artwrok file.

Q6: Can you provide mounting accessories with the equipment?

Q7: How about the packaging?

A: Carton packaging, different logos can be customized according to customer requirements.

Q8: What is the payment term?

A: Usually payment is by T/T.

In stock

Receives in 6 days.

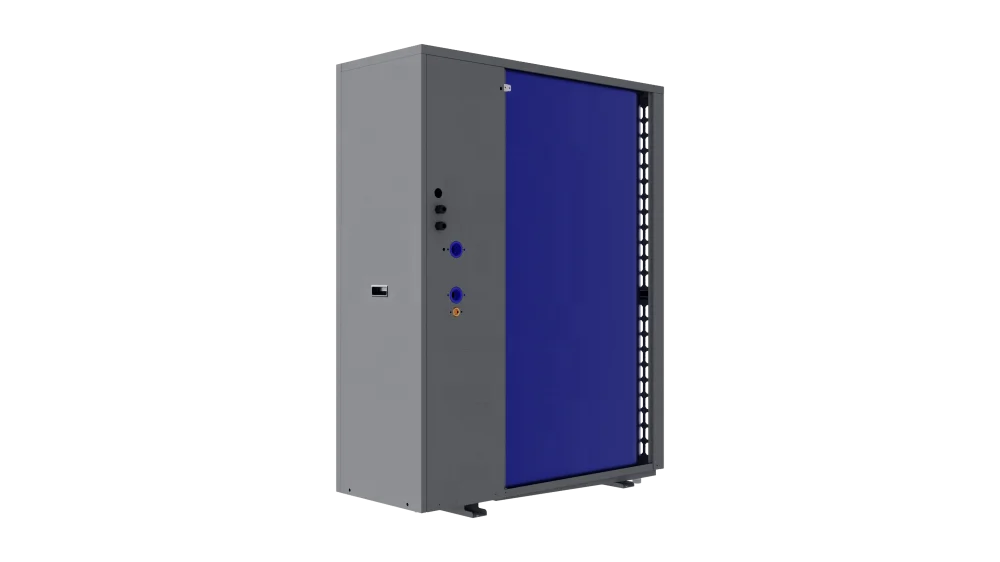

R290 16kW DC Inverter Monoblock Residential Heat Pump High Efficiency Electric for Heating/Cooling/Domestic Hot Water WiFi

icrush-schmuck

R290 16kW DC Inverter Monoblock Residential Heat Pump High Efficiency Electric for Heating/Cooling/Domestic Hot Water WiFi

(0)

€2.802,00

Product Description

Scalable Integration

Our system supports cascading up to 16 heat pumps, offering unparalleled scalability and flexibility for large installations. This

powerful feature ensures that even the most demanding heating requirements can be met with ease, providing a seamless and

efficient solution for both residential applications.

Safety First

Given the flammable and explosive nature of R290 refrigerant, our unit prioritizes user safety with its integrated refrigerant

leak sensor ,automated pressure relief valve and gas separator(optional). These advanced features ensure the immediate detection

of any leaks, while simultaneously preventing the refrigerant from contaminating the water system.

Eco-friendly

Using eco-friendly R290 refrigerant, with a Global Warming Potential (GWP) as low as 3, our heat pump delivers higher heating

efficiency and an environmentally friendly solution. It effortlessly heats even in temperatures as low as -25°C.

Superior Efficiency

Achieving an impressive A+++ energy efficiency rating, our heat pump excels at both 35°C and 55°C, ensuring remarkable energy

savings. This ultra-efficient performance not only reduces electricity consumption significantly but also provides optimal heating

comfort, making it an environmentally friendly and cost-effective solution for your home.

Premium Components

To ensure optimal product performance, all key components are sourced from renowned industry brands. This includes the fully

variable-speed DC HIGHLY twin-rotor compressor, the plate heat exchangers from Danfoss or Weyee, and the water pumps from Grundfos or Shimge.

Integrated Terminals

Our product features a specially designed 35-position terminal block, which integrates most of the wiring into a plug-and-play
terminal. This design not only facilitates easy installation and maintenance for users but also effectively separates high voltage
and low voltage systems for enhanced safety and convenience.

Whisper-Quiet Operation

Details Images

Product Packaging

Product Parameters

Model

GSHVSH-6AA1

GSHVSH-8AA1

GSHVSH-10AA1

GSHVSH-12AA1

GSHVSH-16AA1

GSHVSH-18AA1

Power Supply

220~240V/1ph/50Hz

Heating Capacity(Max.)(A7/6℃, W30/35℃)

Heating Capacity(kW)

6.07

(2.63~9.10)

8.11

(3.57~12.29)

10.25

(4.39~13.50)

11.98

(4.39~15.45)

16.20
(6.17~18.51)

17.60

(6.50~22.00)

Power Input(kW)

1.19

(0.54~2.28)

1.60

(0.74~3.17)

2.07

(0.89~3.55)

2.45

(0.89~4.06)

3.38

(1.26~4.83)

3.62

(1.35~5.88)

COP

5.20

(4.20~5.40)

5.07

(4.10~5.35)

4.95

(3.90~5.30)

4.89

(3.85~5.20)

4.79

(3.75~5.00)

4.86

(3.82~5.30)

Heating Capacity(Max.)(A7/6℃ W47/55℃)

Heating Capacity(kW)

5.99

(2.99~8.19)

8.11

(3.65~19.96)

10.07

(3.85~11.75)

11.55

(3.83~13.35)

15.89

(5.75~17.20)

17.85

(5.45~18.89)

Power Inout(kW)

1.87

(1.03~2.92)

2.65

(1.11~3.87)

3.12

(1.20~4.35)

3.71

(1.20~5.03)

5.30

(1.81~5.84)

5.88

(2.15~6.85)

COP

3.20

(2.90~3.46)

3.18

(2.83~3.45)

3.23

(2.75~3.57)

3.11

(2.65~3.57)

3.00

(2.83~3.45)

4.86

(3.82~5.30)

Cooling Capacity(Max.)(A35/24℃, W12/7℃)

Cooling Capacity(kW)

5.00

(1.38~5.70)

7.10

(1.44~8.11)

8.50

(3.65~9.45)

10.00

(3.65~11.04)

13.00

(4.03~13.51)

17.85

(5.45~18.89)

Power Input(kW)

1.77

(0.67~2.44)

2.51

(0.90~3.20)

3.01

(1.12~3.51)

3.68

(1.12~3.97)

4.60

(1.45~5.03)

5.88

(2.15~6.85)

EER

2.82

(2.03~3.20)

2.83

(2.00~3.15)

2.82

(2.00~3.10)

2.72

(1.95~3.00)

2.83

(1.98~3.05)

3.03

(2.64~3.57)

General Data

ErP Level(Outlet water temp. at 35℃/55℃)

A+++/A+++

Rated Power Input(kW)

3.6

4.65

5.05

5.45

6.95

7.5

Rated Current Input(A)

15.0

20.4

23.0

25.0

30.5

35.0

Refrigerant

R290

Rated Water Flow(m³/h)

1.00

1.37

1.7

2.06

2.75

3.1

Water Pressure Drop(kPa)

Max. Outlet Water Temp.(℃)

Operating Temp. Range(Heating Mode)(℃)

-25~45

Operating Temp. Range(Cooling Mode)(℃)

16~45

Sound Pressure at 1m distance

(39~51)

(39~52)

(39~55)

（39~55）

Water Piping Connections(inch)

G5/4

Net Weight(kg)

110

125

145

190

220

Gross Weight(kg)

115

135

165

220

240

Net Dimensions(L*D*H)(mm)

1290*460*955

1320*500*1094

1450*500*1005

1190*500*1515

Packed Dimensions(L*D*H)*(mm)

1320*500*1094

1520*540*1140

1220*540*1640

Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data.

Model	GSHVTH-10AA1	GSHVTH-12AA1	GSHVTH-16AA1	GSHVTH-18AA1	GSHVTH-24AA1
Power Supply	380~415V/3ph/50Hz
Heating Capacity(Max.)(A7/6℃, W30/35℃)
Heating Capacity(kW)	10.25 (4.39~13.50)	11.98 (4.39~15.45)	16.20 (6.17~18.51)	17.60 (6.50~22.00)	24.06 (9.63~29.13)
Power Input(kW)	2.07 (0.89~3.55)	2.45 (0.89~4.06)	3.38 (1.26~4.83)	3.62 (1.35~5.88)	4.96 (2.00~7.82)
COP	4.95 (3.90~5.30)	4.89 (3.85~5.20)	4.79 (3.75~5.00)	4.86 (3.82~5.30)	4.85 (3.86~5.30)
Heating Capacity(Max.)(A7/6℃, W47/55℃)
Heating Capacity(kW)	10.07 (3.85~11.75)	11.55 (3.85~13.35)	15.89 (5.75~17.20)	17.85 (5.45~18.89)	23.85 (8.45~25.89)
Power Input(kW)	3.12 (1.20~4.35)	3.71 (1.20~5.03)	5.30 (1.81~5.84)	5.88 (2.15~6.85)	8.01 (2.86~9.12)
COP	3.23 (2.75~3.57)	3.11 (2.65~3.57)	3.00 (2.83~3.45)	3.03 (2.64~3.57)	2.98 (2.84~3.57)
Cooling Capacity(Max.)(A35/24℃, W12/7℃)
Cooling Capacity(kW)	8.50 (3.65~9.45)	10.00 (3.65~11.04)	13.00 (4.03~13.51)	15.00 (4.55~17.20)	17.00 (6.15~19.50)
Power Input(kW)	3.01 (1.12~3.51)	3.68 (1.12~3.97)	4.60 (1.45~5.03)	5.52 (1.85~7.31)	6.14 (2.50~9.75)
EER	2.82 (2.00~3.10)	2.72 (1.95~3.00	2.83 (1.98~3.05)	2.72 (1.96~2.98)	2.77 (2.03~3.00)
General Data
ErP Level(Outlet Water Temp. at 35℃/55℃)	A+++/A+++
Rated Power Input(kW)	5.05	5.86	6.95	10.52	12.52
Rated Current Input(kW)	8.5	10.0	11.7	17.3	19.5
Refrigerant	R290
Rated Water Flow(m³/h)	1.7	2.06	2.75	3.1	4.2
Water Pressure Drop(kPa)	20	20	55	55	60
Max. Outlet Water Temp.(℃)	75
Operating Temp. Range(Heating Mode)(℃)	-25~45
Operating Temp. Range(Cooling Mode)(℃)	16~45
Sound Pressure at 1m distance(dB(A))	44 (39~52)	46 (39~52)	48 (39~55)	49 (39~55)	52 (50~60)
Water Piping Connections(inch)	G1	G1	G5/4	G5/4	G3/2
Net Weight(kg)	145	145	190	220	220
Gross Weight(kg)	165	165	220	240	240
Net Dimensions(LDH)(mm)	1290460955	1290460955	14905001005	11905001515	11905001515
Packed Dimensions(LDH)(mm)	13205001094	13205001094	15205401140	12205401640	12205401640
Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data.

Online Visit

Manufacturing Technique

Company Profile

GOODHEAT is a high-tech enterprise under GOODWE, focusing on the development, manufacturing and sales of heat pump products. Located in Shunde District, Foshan City, Guangdong Province, the hinterland of the Pearl River Delta, the company is committed to providing global users with high-standard heat pump products and thermal energy supply services that are green, sustainable, energy-efficient, reliable and quiet.
Business philosophy: providing GOODHEAT for global users is the only mission for the survival of the enterprise. The mainproducts are divided into three categories: heating heat pump products, hot water heat pump products, and swimming pool heat pump products.The product capacity range covers 3kW-500kW heating capacity, which can effectively meet the heating, hot water, and swimming pool heating needs of global household users and industrial and commercial users. Four international-level explosion-proof laboratories that meet European standards, American standards, Australian standards, and national standards are equipped, covering the development and verification of 3kW-500kW heating capacity products. Five new high-standard heat pump automation production lines have been invested and built, which are globally leading.
The company upholds the concept of empowering the green earth with science and technology, harmonizing life and work, and promoting the symbiotic relationship between products and nature.
FOCUS ON GOOD HEAT PUMP

FOCUS ON GOOD HEAT

FAQ

Q1: Are you a manufacturer or trading company? How can I trust your company?

Q2: Can you provide OEM/ODM service?

A: Yes, GOODHEAT offers OEM/ODM services. We have our own sheet metal production line and powder coating line, ensuring customized solutions and high-quality production tailored to your needs.

Q3: Do you have technical support?

A: We have a professional technical team standby for you 7*24 hours.

Q4: Can you help to calculate the best logistics and transportation solution?

A: Yes, our professional logistics team will help you arrange cost-effective shipping services, allowing you to ship quickly and at a lower cost. Normally we recommend shipping by FCL.

Q5: What is your lead time?

A: About 35-40 days upon deposit payment and confirmation of artwrok file.

Q6: Can you provide mounting accessories with the equipment?

Q7: How about the packaging?

A: Carton packaging, different logos can be customized according to customer requirements.

Q8: What is the payment term?

A: Usually payment is by T/T.

In stock

Receives in 6 days.

R290 18kW Residential Monoblock Air Source Heat Pump High Efficiency Metal Housing WiFi 4G SCOP Double A+++ for Households 55℃

icrush-schmuck

R290 18kW Residential Monoblock Air Source Heat Pump High Efficiency Metal Housing WiFi 4G SCOP Double A+++ for Households 55℃

(0)

€3.206,00

Product Description

Scalable Integration

Our system supports cascading up to 16 heat pumps, offering unparalleled scalability and flexibility for large installations. This

powerful feature ensures that even the most demanding heating requirements can be met with ease, providing a seamless and

efficient solution for both residential applications.

Safety First

Given the flammable and explosive nature of R290 refrigerant, our unit prioritizes user safety with its integrated refrigerant

leak sensor ,automated pressure relief valve and gas separator(optional). These advanced features ensure the immediate detection

of any leaks, while simultaneously preventing the refrigerant from contaminating the water system.

Eco-friendly

Using eco-friendly R290 refrigerant, with a Global Warming Potential (GWP) as low as 3, our heat pump delivers higher heating

efficiency and an environmentally friendly solution. It effortlessly heats even in temperatures as low as -25°C.

Superior Efficiency

Achieving an impressive A+++ energy efficiency rating, our heat pump excels at both 35°C and 55°C, ensuring remarkable energy

savings. This ultra-efficient performance not only reduces electricity consumption significantly but also provides optimal heating

comfort, making it an environmentally friendly and cost-effective solution for your home.

Premium Components

To ensure optimal product performance, all key components are sourced from renowned industry brands. This includes the fully

variable-speed DC HIGHLY twin-rotor compressor, the plate heat exchangers from Danfoss or Weyee, and the water pumps from Grundfos or Shimge.

Integrated Terminals

Our product features a specially designed 35-position terminal block, which integrates most of the wiring into a plug-and-play
terminal. This design not only facilitates easy installation and maintenance for users but also effectively separates high voltage
and low voltage systems for enhanced safety and convenience.

Whisper-Quiet Operation

Details Images

Product Packaging

Product Parameters

Model

GSHVSH-6AA1

GSHVSH-8AA1

GSHVSH-10AA1

GSHVSH-12AA1

GSHVSH-16AA1

GSHVSH-18AA1

Power Supply

220~240V/1ph/50Hz

Heating Capacity(Max.)(A7/6℃, W30/35℃)

Heating Capacity(kW)

6.07

(2.63~9.10)

8.11

(3.57~12.29)

10.25

(4.39~13.50)

11.98

(4.39~15.45)

16.20
(6.17~18.51)

17.60

(6.50~22.00)

Power Input(kW)

1.19

(0.54~2.28)

1.60

(0.74~3.17)

2.07

(0.89~3.55)

2.45

(0.89~4.06)

3.38

(1.26~4.83)

3.62

(1.35~5.88)

COP

5.20

(4.20~5.40)

5.07

(4.10~5.35)

4.95

(3.90~5.30)

4.89

(3.85~5.20)

4.79

(3.75~5.00)

4.86

(3.82~5.30)

Heating Capacity(Max.)(A7/6℃ W47/55℃)

Heating Capacity(kW)

5.99

(2.99~8.19)

8.11

(3.65~19.96)

10.07

(3.85~11.75)

11.55

(3.83~13.35)

15.89

(5.75~17.20)

17.85

(5.45~18.89)

Power Inout(kW)

1.87

(1.03~2.92)

2.65

(1.11~3.87)

3.12

(1.20~4.35)

3.71

(1.20~5.03)

5.30

(1.81~5.84)

5.88

(2.15~6.85)

COP

3.20

(2.90~3.46)

3.18

(2.83~3.45)

3.23

(2.75~3.57)

3.11

(2.65~3.57)

3.00

(2.83~3.45)

4.86

(3.82~5.30)

Cooling Capacity(Max.)(A35/24℃, W12/7℃)

Cooling Capacity(kW)

5.00

(1.38~5.70)

7.10

(1.44~8.11)

8.50

(3.65~9.45)

10.00

(3.65~11.04)

13.00

(4.03~13.51)

17.85

(5.45~18.89)

Power Input(kW)

1.77

(0.67~2.44)

2.51

(0.90~3.20)

3.01

(1.12~3.51)

3.68

(1.12~3.97)

4.60

(1.45~5.03)

5.88

(2.15~6.85)

EER

2.82

(2.03~3.20)

2.83

(2.00~3.15)

2.82

(2.00~3.10)

2.72

(1.95~3.00)

2.83

(1.98~3.05)

3.03

(2.64~3.57)

General Data

ErP Level(Outlet water temp. at 35℃/55℃)

A+++/A+++

Rated Power Input(kW)

3.6

4.65

5.05

5.45

6.95

7.5

Rated Current Input(A)

15.0

20.4

23.0

25.0

30.5

35.0

Refrigerant

R290

Rated Water Flow(m³/h)

1.00

1.37

1.7

2.06

2.75

3.1

Water Pressure Drop(kPa)

Max. Outlet Water Temp.(℃)

Operating Temp. Range(Heating Mode)(℃)

-25~45

Operating Temp. Range(Cooling Mode)(℃)

16~45

Sound Pressure at 1m distance

(39~51)

(39~52)

(39~55)

（39~55）

Water Piping Connections(inch)

G5/4

Net Weight(kg)

110

125

145

190

220

Gross Weight(kg)

115

135

165

220

240

Net Dimensions(L*D*H)(mm)

1290*460*955

1320*500*1094

1450*500*1005

1190*500*1515

Packed Dimensions(L*D*H)*(mm)

1320*500*1094

1520*540*1140

1220*540*1640

Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data.

Model	GSHVTH-10AA1	GSHVTH-12AA1	GSHVTH-16AA1	GSHVTH-18AA1	GSHVTH-24AA1
Power Supply	380~415V/3ph/50Hz
Heating Capacity(Max.)(A7/6℃, W30/35℃)
Heating Capacity(kW)	10.25 (4.39~13.50)	11.98 (4.39~15.45)	16.20 (6.17~18.51)	17.60 (6.50~22.00)	24.06 (9.63~29.13)
Power Input(kW)	2.07 (0.89~3.55)	2.45 (0.89~4.06)	3.38 (1.26~4.83)	3.62 (1.35~5.88)	4.96 (2.00~7.82)
COP	4.95 (3.90~5.30)	4.89 (3.85~5.20)	4.79 (3.75~5.00)	4.86 (3.82~5.30)	4.85 (3.86~5.30)
Heating Capacity(Max.)(A7/6℃, W47/55℃)
Heating Capacity(kW)	10.07 (3.85~11.75)	11.55 (3.85~13.35)	15.89 (5.75~17.20)	17.85 (5.45~18.89)	23.85 (8.45~25.89)
Power Input(kW)	3.12 (1.20~4.35)	3.71 (1.20~5.03)	5.30 (1.81~5.84)	5.88 (2.15~6.85)	8.01 (2.86~9.12)
COP	3.23 (2.75~3.57)	3.11 (2.65~3.57)	3.00 (2.83~3.45)	3.03 (2.64~3.57)	2.98 (2.84~3.57)
Cooling Capacity(Max.)(A35/24℃, W12/7℃)
Cooling Capacity(kW)	8.50 (3.65~9.45)	10.00 (3.65~11.04)	13.00 (4.03~13.51)	15.00 (4.55~17.20)	17.00 (6.15~19.50)
Power Input(kW)	3.01 (1.12~3.51)	3.68 (1.12~3.97)	4.60 (1.45~5.03)	5.52 (1.85~7.31)	6.14 (2.50~9.75)
EER	2.82 (2.00~3.10)	2.72 (1.95~3.00	2.83 (1.98~3.05)	2.72 (1.96~2.98)	2.77 (2.03~3.00)
General Data
ErP Level(Outlet Water Temp. at 35℃/55℃)	A+++/A+++
Rated Power Input(kW)	5.05	5.86	6.95	10.52	12.52
Rated Current Input(kW)	8.5	10.0	11.7	17.3	19.5
Refrigerant	R290
Rated Water Flow(m³/h)	1.7	2.06	2.75	3.1	4.2
Water Pressure Drop(kPa)	20	20	55	55	60
Max. Outlet Water Temp.(℃)	75
Operating Temp. Range(Heating Mode)(℃)	-25~45
Operating Temp. Range(Cooling Mode)(℃)	16~45
Sound Pressure at 1m distance(dB(A))	44 (39~52)	46 (39~52)	48 (39~55)	49 (39~55)	52 (50~60)
Water Piping Connections(inch)	G1	G1	G5/4	G5/4	G3/2
Net Weight(kg)	145	145	190	220	220
Gross Weight(kg)	165	165	220	240	240
Net Dimensions(LDH)(mm)	1290460955	1290460955	14905001005	11905001515	11905001515
Packed Dimensions(LDH)(mm)	13205001094	13205001094	15205401140	12205401640	12205401640
Note: The data above is for reference only. Please refer to the nameplate on the unit if for more specific data.

Online Visit

Manufacturing Technique

Company Profile

GOODHEAT is a high-tech enterprise under GOODWE, focusing on the development, manufacturing and sales of heat pump products. Located in Shunde District, Foshan City, Guangdong Province, the hinterland of the Pearl River Delta, the company is committed to providing global users with high-standard heat pump products and thermal energy supply services that are green, sustainable, energy-efficient, reliable and quiet.
Business philosophy: providing GOODHEAT for global users is the only mission for the survival of the enterprise. The mainproducts are divided into three categories: heating heat pump products, hot water heat pump products, and swimming pool heat pump products.The product capacity range covers 3kW-500kW heating capacity, which can effectively meet the heating, hot water, and swimming pool heating needs of global household users and industrial and commercial users. Four international-level explosion-proof laboratories that meet European standards, American standards, Australian standards, and national standards are equipped, covering the development and verification of 3kW-500kW heating capacity products. Five new high-standard heat pump automation production lines have been invested and built, which are globally leading.
The company upholds the concept of empowering the green earth with science and technology, harmonizing life and work, and promoting the symbiotic relationship between products and nature.
FOCUS ON GOOD HEAT PUMP

FOCUS ON GOOD HEAT

FAQ

Q1: Are you a manufacturer or trading company? How can I trust your company?

Q2: Can you provide OEM/ODM service?

A: Yes, GOODHEAT offers OEM/ODM services. We have our own sheet metal production line and powder coating line, ensuring customized solutions and high-quality production tailored to your needs.

Q3: Do you have technical support?

A: We have a professional technical team standby for you 7*24 hours.

Q4: Can you help to calculate the best logistics and transportation solution?

A: Yes, our professional logistics team will help you arrange cost-effective shipping services, allowing you to ship quickly and at a lower cost. Normally we recommend shipping by FCL.

Q5: What is your lead time?

A: About 35-40 days upon deposit payment and confirmation of artwrok file.

Q6: Can you provide mounting accessories with the equipment?

Q7: How about the packaging?

A: Carton packaging, different logos can be customized according to customer requirements.

Q8: What is the payment term?

A: Usually payment is by T/T.

In stock

Receives in 6 days.

16kW Three-Phase R290 Solar-Powered PV-Powered Air Water Heat Pump Metal Domestic Hot Water Heating/Cooling Air Source Heat Pump

icrush-schmuck

16kW Three-Phase R290 Solar-Powered PV-Powered Air Water Heat Pump Metal Domestic Hot Water Heating/Cooling Air Source Heat Pump

(0)

€1.566,00

Products Description

PV Direct Drive

Employing photovoltaic direct drive technology, this system no longer requires converting solar power from DC to AC. This innovation enhances efficiency and reduces energy loss, providing a seamless and sustainable energy solution for your heating needs.

MPPT function

Featuring Maximum Power Point Tracking (MPPT) technology, this system efficiently optimizes the use of solar power by continuously adjusting to the optimal power point. This ensures maximum energy harvest from solar panels, enhancing the overall performance and efficiency of the heating solution.

Eco-friendly

Superior Efficiency

Whisper-Quiet Operation

Scalable Integration

Product Parameters

Model

GSHVSHP-6AA1

GSHVSHP-8AA1

GSHVSHP-10AA1

GSHVSHP-12AA1

GSHVSHP-16AA1

GSHVSHP-18AA1

Capacity

6kW

8kW

10kW

12kW

16kW

18kW

Power Supply

220~240V/1N~/50Hz

Heating(Max)(Air 7/6℃, Water 30/35℃)

Heating Capacity(kW)

2.63~9.10

3.57~12.29

4.39~13.50

4.39~15.45

6.17~18.51

6.50~22.00

Power Input(kW)

0.54~2.28

0.74~3.17

0.89~3.55

0.89~4.06

1.26~4.83

1.35~5.88

Current Input(A)

2.37~10.01

3.23~13.91

4.12~15.59

4.12~17.83

5.53~21.21

2.27~9.87

COP(W/W)

2.10~5.40

4.10~5.35

3.90~5.30

3.85~5.20

3.75~5.00

3.82~5.30

Heating(Max)(Air 7/6℃, Water 47/55℃)

Heating Capacity(kW)

2.99~8.19

3.65~10.96

3.85~11.75

3.85~13.35

5.75~17.20

5.45~18.89

Power Input(kW)

1.03~2.92

1.11~3.87

1.20~4.35

1.20~5.03

1.81~5.84

2.15~6.85

Current Input(A)

4.57~12.79

4.87~17.01

5.27~19.10

5.27~22.09

7.95~25.65

9.84~30.12

COP(W/W)

2.90~3.46

2.83~3.45

2.75~3.57

2.65~3.57

2.83~3.45

2.64~3.57

Cooling(Max)(Air 35/24℃, Water 12/7℃)

Cooling Capacity(kW)

1.38~5.70

1.44~8.11

3.65~9.45

3.65~11.04

4.03~13.51

4.55~17.20

Input Power(kW)

0.67~2.44

0.90~3.20

1.12~3.51

1.12~3.97

1.45~5.03

1.85~7.31

Input Current(A)

3.06~10.27

3.93~14.05

5.18~15.42

5.18~17.44

6.37~22.09

8.47~32.1

EER(W/W)

2.03~3.02

2.00~3.15

2.00~3.10

1.95~3.00

1.98~3.05

1.96~2.98

ERP Level (Output Water Temp. at 35℃/55℃)

A+++/A+++

Rated Input Power(kW)

3.6

4.65

5.05

5.45

6.95

7.5

Rated Input Current(A)

15.0

20.4

23.0

25.0

30.5

35.0

Refrigerant Type/Charge/GWP(kg)

R290/0.85/3

R290/0.90/3

R290/1.00/3

R290/1.15/3

R290/1.4/3

Rated Water Flow(m³/h)

1.00

1.37

1.7

2.06

2.75

3.1

Fan Quantity

Fan Motor Type

DC inverter

Compressor

DC inverter

Circulating Pump

Inverter type/ Built-in

IP Class

IPX4

Sound Pressure at 1m Distance(dB(A))

43(39~51)

44(39~52)

46(39~52)

48(39~55)

49(39~55)

Max. Outlet Water Temp.(℃)

Water Piping Connections(inch)

Water Pressure Drop(kPa)

Operating Temp. Range(Heating Mode)(℃)

-25~45

Operating Temp. Range(Cooling Mode)(℃)

16~45

Unpacked Dimensions(L×D×H)(mm)

1290×460×955

1490×500×955

1190×500×1515

Packed Dimensions(L×D×H)(mm)

1320×500×1090

1320×00×1090

1320×500×1090

1520×540×1140

1220×540×1640

Unpacked Weight(kg)

135

140

160

185

Packed Weight(kg)

155

160

175

205

Model	GSHVTH-10AA1	GSHVTH-12AA1	GSHVTH-16AA1	GSHVTH-18AA1	GSHVTH-24AA1
Capacity	10kW	12kW	16kW	18kW	14kW
Power Supply	380~415V/3N~/50Hz
Heating(Max) (Air 7/6℃, Water 30/35℃)
Heating Capacity(kW)	4.39~13.50	4.39~15.45	6.17~18.51	6.50~22.00	9.63~29.13
Power Input(kW)	0.89~3.55	0.89~4.06	1.26~4.83	1.35~5.88	2.00~7.82
Current Input(A)	1.84~5.95	1.84~6.81	2.11~8.11	2.27~9.87	3.75~12.18
COP(W/W)	3.90~5.30	3.85~5.20	3.75~5.00	3.82~5.30	3.86~5.30
Heating(Max) (Air 7/6℃, Water 47/55℃)
Heating Capacity(kW)	3.85~11.75	3.85~13.35	5.75~17.20	5.45~18.89	8.45~25.89
Power Input(kW)	1.20~4.35	1.20~5.03	1.81~5.84	2.15~6.85	2.86~9.12
Current Input(A)	2.01~6.34	2.01~8.44	3.04~9.80	3.17~10.60	4.94~14.50
COP(W/W)	2.75~3.57	2.65~3.57	2.83~3.45	2.64~3.57	2.84~3.57
Cooling(Max) (Air 35/24℃, Water 12/6℃)
Cooling Capacity(kW)	3.65~9.45	3.65~11.04	4.03~13.51	4.55~17.20	6.15~19.50
Input Power(kW)	1.12~3.51	1.12~3.97	1.45~5.03	1.85~7.31	2.50~9.75
Input Current(A)	1.97~5.89	1.97~6.30	2.43~8.44	2.99~11.26	4.20~16.36
EER(W/W)	2.00~3.10	1.95~3.00	1.98~3.05	1.96~2.98	2.03~3.00
ERP Level (Outlet Water Temp. at 35℃/55℃)	A+++/A+++	A+++/A+++	A+++/A++	A+++/A+++	A+++/A+++
Rated Input Power(kW)	5.05	5.86	6.95	10.52	12.52
Rated Input Current(A)	8.5	10.0	11.7	17.3	19.5
Refrigerant Type/Charge/GWP(kg)	R290/1.00/3	R290/1.00/3	R290/1.15/3	R290/1.4/3	R290/1.8/3
Rated Water Flow(m³/h）	1.7	2.06	2.75	3.1	4.2
Fan Quantity	1	1	1	2	2
Fan Motor Type	DC inverter
Compressor	DC inverter
Circulating Pump	Inverter Type/Built-in
IP Class	IPX4
Sound Pressure at 1m Distance(dB(A))	44(39~52)	46(39~52)	48(39~55)	49(39~55)	52(50~60)
Max. Outlet Water Temp.(℃)	75	75	75	75	75
Water Piping Connections(inch)	G1	G1	G1	G1	G1
Water Pressure Drop(kPa)	20	20	55	55	60
Operating Temp. Range(Heating Mode)(℃)	-25~45
Operating Temp. Range(Cooling Mode)(℃)	16~45
Unpacked Dimensions(L×D×H)(mm)	1290×460×955	1290×460×955	1490×500×1005	1190×500×1515	1190×500×1515
Packed Dimensions(L×D×H)(mm)	1320×500×1090	1320×500×1090	1520×540×1140	1220×540×1640	1220×540×640
Unpacked Weight(kg)	140	140	165	213	215
Packed Weight(kg)	160	160	190	238	235

Product packaging

Customer Photos

Manufacturing Technique

Company Profile

FAQ

Q1: Are you a manufacturer or trading company? How can I trust your company?

Q2: Can you provide OEM/ODM service?

A: Yes, GOODHEAT offers OEM/ODM services. We have our own sheet metal production line and powder coating line, ensuring customized solutions and high-quality production tailored to your needs.

Q3: Do you have technical support?

A: We have a professional technical team standby for you 7*24 hours.

Q4: Can you help to calculate the best logistics and transportation solution?

A: Yes, our professional logistics team will help you arrange cost-effective shipping services, allowing you to ship quickly and at a lower cost. Normally we recommend shipping by FCL.

Q5: What is your lead time?

A: About 35-40 days upon deposit payment and confirmation of artwrok file.

Q6: Can you provide mounting accessories with the equipment?

A: Yes of course. This is one of our standard services and we can calculate and quote the installation kit you require.

Note: Most of our customers prefer to ship the equipment and installation materials together, we specialize in doing this with good packaging methods.

Q7: How about the packaging?

A: Carton packaging, different logos can be customized according to customer requirements.

Q8: What is the payment term?

A: Usually payment is by T/T.

Recommend Products

In stock

Receives in 6 days.

100L R290 Wall-Mounted All-In-One Air Heat Pump Water Heater DC Inverter On-Off Electric for Household Hot Water Domestic Use

icrush-schmuck

100L R290 Wall-Mounted All-In-One Air Heat Pump Water Heater DC Inverter On-Off Electric for Household Hot Water Domestic Use

(0)

€408,00

Products Description

Eco-Friendly

Utilizing R290 refrigerant, which boasts a Global Warming Potential (GWP) of just 3, this pool heat pump offers a greener, more efficient way to heat your pool. Enjoy the perfect pool temperature while reducing your environmental footprint with this advanced and sustainable heating technology.

Microchannel Heat Coil

Utilizing cutting-edge microchannel materials, offering superior heat transfer performance compared to traditional copper and aluminum tubes. With enhanced efficiency and significantly reduced energy consumption, this solution provides an eco-friendly and cost-effective way to maintain optimal pool temperatures. Ideal for both residential and commercial pools, ensuring comfort and enjoyment with stable and consistent heating.

Smart Control

Easy-Install

The detachable top cover simplifies installation and maintenance, ensuring quick and easy access to internal components. This design not only saves time and effort but also allows for hassle-free upkeep, making it the perfect choice for those seeking convenience and efficiency.

Title goes here.

Capable of reaching an outlet water temperature of up to 75°C, this heat pump water heater ensures a reliable and efficient hot water supply. Ideal for modern bathrooms, it provides consistent high-temperature water for your daily needs, enhancing your comfort and convenience.

Product Parameters

Volume

100L

120L

150L

200L

250L

300L

Model

GHWSVB(T)-100AA1

GHWVSB(T)-120AA1

GHWSVT-150AA1

GHWSVBT-200AA1

GHWSVBT-250AA1

GHWSVBT-300AA1

Power Supply

220~240V/1N~/50Hz

Heating Capacity at Air 20℃/15℃, Water Temperature from 15℃ to 55℃

Rated Heating Capacity(kW)

1.0

Rated Input Power(kW)

0.24

0.35

COP(20℃/15℃)

4.25

Energy Efficient Class

A+

Max Current(A)

Tank Capacity(L)

100

120

150

200

250

300

Refrigerant

R290/150g

Heat Exchanger

Microchannel

Defrosting Methods

By 4 Way Valve

Water Proof Level

IPX4

Max Water Tank Pressure

0.8MPa

Outer Casing/Shape

Metal/ABS

Water Tank Material

Stainless Steel/Enamel

Expansion Valve

Electronic

Air Flow(m³/h)

350m³/h

Air Discharge

Vertical

Air Duct Diameter

Ducted 150mm

Back-up Heater(kW)

1.5

Rate Current(A)

6.9

Inner Coil(Optional)

3.5m

Default Water Temp.(℃)

Max Water Temp.(℃)

Working Temp. Range(℃)

-7~45

Unpacked Dimension(L*W*H)(mm)

∅510*1240

∅510*1394

∅510*1625

∅570*1770

∅650*1780

∅650*2000

Packed Dimension(L*W*H)(mm)

570*570*1280

570*570*1434

570*570*1665

640*640*1890

720*720*1930

720*720*2150

Net Weight(kg)

48/60

51/70

98/116

111/130

126/146

Gross Weight(kg)

62/71

68/83

108/126

130/150

106/166

Noise(dB(A))

Above results are tested at ambient temperature DB20℃/WB15℃, water temperature in 15℃/out 55℃

Product Packaging

Manufacturing Technique

Company Profile

FAQ

Q1: Are you a manufacturer or trading company? How can I trust your company?

Q2: Can you provide OEM/ODM service?

A: Yes, GOODHEAT offers OEM/ODM services. We have our own sheet metal production line and powder coating line, ensuring customized solutions and high-quality production tailored to your needs.

Q3: Do you have technical support?

A: We have a professional technical team standby for you 7*24 hours.

Q4: Can you help to calculate the best logistics and transportation solution?

A: Yes, our professional logistics team will help you arrange cost-effective shipping services, allowing you to ship quickly and at a lower cost. Normally we recommend shipping by FCL.

Q5: What is your lead time?

A: About 35-40 days upon deposit payment and confirmation of artwrok file.

Q6: Can you provide mounting accessories with the equipment?

A: Yes of course. This is one of our standard services and we can calculate and quote the installation kit you require.

Note: Most of our customers prefer to ship the equipment and installation materials together, we specialize in doing this with good packaging methods.

Q7: How about the packaging?

A: Carton packaging, different logos can be customized according to customer requirements.

Q8: What is the payment term?

A: Usually payment is by T/T.

Recommend Products

In stock

Receives in 6 days.

200L R290 DC Inverter Top Discharge All-In-One Air to Water Heat Pump Water Heater Electric Source

icrush-schmuck

200L R290 DC Inverter Top Discharge All-In-One Air to Water Heat Pump Water Heater Electric Source

(0)

€408,00

Products Description

Eco-Friendly

Microchannel Heat Coil

Smart Control

Easy-Install

Title goes here.

Product Parameters

Volume

100L

120L

150L

200L

250L

300L

Model

GHWSVB(T)-100AA1

GHWVSB(T)-120AA1

GHWSVT-150AA1

GHWSVBT-200AA1

GHWSVBT-250AA1

GHWSVBT-300AA1

Power Supply

220~240V/1N~/50Hz

Heating Capacity at Air 20℃/15℃, Water Temperature from 15℃ to 55℃

Rated Heating Capacity(kW)

1.0

Rated Input Power(kW)

0.24

0.35

COP(20℃/15℃)

4.25

Energy Efficient Class

A+

Max Current(A)

Tank Capacity(L)

100

120

150

200

250

300

Refrigerant

R290/150g

Heat Exchanger

Microchannel

Defrosting Methods

By 4 Way Valve

Water Proof Level

IPX4

Max Water Tank Pressure

0.8MPa

Outer Casing/Shape

Metal/ABS

Water Tank Material

Stainless Steel/Enamel

Expansion Valve

Electronic

Air Flow(m³/h)

350m³/h

Air Discharge

Vertical

Air Duct Diameter

Ducted 150mm

Back-up Heater(kW)

1.5

Rate Current(A)

6.9

Inner Coil(Optional)

3.5m

Default Water Temp.(℃)

Max Water Temp.(℃)

Working Temp. Range(℃)

-7~45

Unpacked Dimension(L*W*H)(mm)

∅510*1240

∅510*1394

∅510*1625

∅570*1770

∅650*1780

∅650*2000

Packed Dimension(L*W*H)(mm)

570*570*1280

570*570*1434

570*570*1665

640*640*1890

720*720*1930

720*720*2150

Net Weight(kg)

48/60

51/70

98/116

111/130

126/146

Gross Weight(kg)

62/71

68/83

108/126

130/150

106/166

Noise(dB(A))

Above results are tested at ambient temperature DB20℃/WB15℃, water temperature in 15℃/out 55℃

Product Packaging

Manufacturing Technique

Company Profile

FAQ

Q1: Are you a manufacturer or trading company? How can I trust your company?

Q2: Can you provide OEM/ODM service?

A: Yes, GOODHEAT offers OEM/ODM services. We have our own sheet metal production line and powder coating line, ensuring customized solutions and high-quality production tailored to your needs.

Q3: Do you have technical support?

A: We have a professional technical team standby for you 7*24 hours.

Q4: Can you help to calculate the best logistics and transportation solution?

A: Yes, our professional logistics team will help you arrange cost-effective shipping services, allowing you to ship quickly and at a lower cost. Normally we recommend shipping by FCL.

Q5: What is your lead time?

A: About 35-40 days upon deposit payment and confirmation of artwrok file.

Q6: Can you provide mounting accessories with the equipment?

A: Yes of course. This is one of our standard services and we can calculate and quote the installation kit you require.

Note: Most of our customers prefer to ship the equipment and installation materials together, we specialize in doing this with good packaging methods.

Q7: How about the packaging?

A: Carton packaging, different logos can be customized according to customer requirements.

Q8: What is the payment term?

A: Usually payment is by T/T.

Recommend Products

In stock

Receives in 6 days.

300L R290 DC Inverter On-Off All-In-One Air to Water Heat Pump Water Heater for Domestic Hot Water

icrush-schmuck

300L R290 DC Inverter On-Off All-In-One Air to Water Heat Pump Water Heater for Domestic Hot Water

(0)

€408,00

Products Description

Eco-Friendly

Microchannel Heat Coil

Smart Control

Easy-Install

Title goes here.

Product Parameters

Volume

100L

120L

150L

200L

250L

300L

Model

GHWSVB(T)-100AA1

GHWVSB(T)-120AA1

GHWSVT-150AA1

GHWSVBT-200AA1

GHWSVBT-250AA1

GHWSVBT-300AA1

Power Supply

220~240V/1N~/50Hz

Heating Capacity at Air 20℃/15℃, Water Temperature from 15℃ to 55℃

Rated Heating Capacity(kW)

1.0

Rated Input Power(kW)

0.24

0.35

COP(20℃/15℃)

4.25

Energy Efficient Class

A+

Max Current(A)

Tank Capacity(L)

100

120

150

200

250

300

Refrigerant

R290/150g

Heat Exchanger

Microchannel

Defrosting Methods

By 4 Way Valve

Water Proof Level

IPX4

Max Water Tank Pressure

0.8MPa

Outer Casing/Shape

Metal/ABS

Water Tank Material

Stainless Steel/Enamel

Expansion Valve

Electronic

Air Flow(m³/h)

350m³/h

Air Discharge

Vertical

Air Duct Diameter

Ducted 150mm

Back-up Heater(kW)

1.5

Rate Current(A)

6.9

Inner Coil(Optional)

3.5m

Default Water Temp.(℃)

Max Water Temp.(℃)

Working Temp. Range(℃)

-7~45

Unpacked Dimension(L*W*H)(mm)

∅510*1240

∅510*1394

∅510*1625

∅570*1770

∅650*1780

∅650*2000

Packed Dimension(L*W*H)(mm)

570*570*1280

570*570*1434

570*570*1665

640*640*1890

720*720*1930

720*720*2150

Net Weight(kg)

48/60

51/70

98/116

111/130

126/146

Gross Weight(kg)

62/71

68/83

108/126

130/150

106/166

Noise(dB(A))

Above results are tested at ambient temperature DB20℃/WB15℃, water temperature in 15℃/out 55℃

Product Packaging

Manufacturing Technique

Company Profile

FAQ

Q1: Are you a manufacturer or trading company? How can I trust your company?

Q2: Can you provide OEM/ODM service?

A: Yes, GOODHEAT offers OEM/ODM services. We have our own sheet metal production line and powder coating line, ensuring customized solutions and high-quality production tailored to your needs.

Q3: Do you have technical support?

A: We have a professional technical team standby for you 7*24 hours.

Q4: Can you help to calculate the best logistics and transportation solution?

A: Yes, our professional logistics team will help you arrange cost-effective shipping services, allowing you to ship quickly and at a lower cost. Normally we recommend shipping by FCL.

Q5: What is your lead time?

A: About 35-40 days upon deposit payment and confirmation of artwrok file.

Q6: Can you provide mounting accessories with the equipment?

A: Yes of course. This is one of our standard services and we can calculate and quote the installation kit you require.

Note: Most of our customers prefer to ship the equipment and installation materials together, we specialize in doing this with good packaging methods.

Q7: How about the packaging?

A: Carton packaging, different logos can be customized according to customer requirements.

Q8: What is the payment term?

A: Usually payment is by T/T.

Recommend Products

In stock

Receives in 6 days.

75kW R290 EVI Commercial Air to Water Heat Pump Electric Power Source for Heating & Cooling for Residential & Office Use

icrush-schmuck

75kW R290 EVI Commercial Air to Water Heat Pump Electric Power Source for Heating & Cooling for Residential & Office Use

(0)

€4.660,00

Products Description

Eco-Friendly

Our state-of-the-art commercial heat pump utilizes the environmentally friendly R290 refrigerant, which boasts a Global Warming Potential (GWP) of just 3. This means our system not only delivers superior heating performance but also significantly reduces your carbon footprint. With an advanced design that ensures optimal efficiency, this heat pump is the ideal choice for businesses seeking sustainable, high-performance heating solutions.

Advanced Technology

Featuring the HITACHI Full DC Inverter Compressor, our commercial heat pump guarantees efficient and reliable performance. With the RENESAS chip, it offers intelligent control, enhancing the system's precision and responsiveness. The self-developed Plug&Play mainboard simplifies installation and maintenance, making it incredibly user-friendly. Engineered to operate flawlessly even in extreme temperatures as low as -35°C, this heat pump is the ideal choice for businesses looking for robust, high-performance heating solutions.

Intelligent Defrosting

Our commercial heat pump features an advanced intelligent defrosting system, ensuring reliable and consistent heating performance even in the harshest conditions. Designed to operate efficiently in cold climates, this innovative system prevents frost buildup, guaranteeing uninterrupted comfort and efficiency for your commercial space. Trust in our cutting-edge technology to keep your environment warm and comfortable all year round.

Scalable Integration

Our commercial heat pump system allows for seamless cascading of up to 16 units, ensuring efficient and reliable large-scale heating solutions. With advanced integration capabilities, this heat pump is perfect for meeting the diverse heating demands of commercial applications, providing consistent performance and energy efficiency across multiple units.

Quiet Operation

Featuring an innovative noise reduction design that includes soundproof cotton and optimized fan blades, this commercial heat pump ensures a quieter heating experience with noise levels as low as 65dB(A) at a distance of 1 meter. Enjoy unparalleled comfort and efficiency without the disruption of unwanted noise, making it the ideal choice for commercial spaces seeking a serene environment.

Hot Water Temp

This commercial heat pump is capable of reaching temperatures up to 75°C, ensuring effective sterilization and improved hygiene. Ideal for environments where cleanliness is paramount, this advanced system provides reliable and efficient heating while maintaining the highest standards of sanitation.

Product Parameters

Model	GSHVTV-50AA1	GSHVTV-75AA1	GSHVTV-100AA1
Capacity	50kW	75kW	100kW
Power Supply	380~415V/3N~/50Hz
Nominal Heating(Max)(Air 7/6℃, Water 30/35℃)
Heating Capacity(kW)	18.50~50.50	25.00~76.00	35.50~105.00
Power Input(kW)	3.95~14.80	6.50~25.00	7.50~30.50
COP	3.50~5.20	3.55~5.25	3.58~5.25
Nominal Heating(Max)(Air 7/6℃, Water 47/55℃)
Heating Capacity(kW)	18.00~49.50	22.50~72.50	33.50~101.00
Power Input(kW)	3.52~17.80	5.50~26.7	7.55~35.80
COP	2.50~3.48	2.50~3.58	2.55~3.58
Nominal Cooling(Max)(Air 35/24℃, Water 12/7℃)
Cooling Capacity(kW)	9.50~33.50	14.50~48.50	16.50~64.00
Power Input(kW)	3.75~12.90	6.95~20.90	7.50~25.90
Max Power Input(kW)	19.5	30.5	40.5
Max Current(A)	35.5	54.5	72.5
ERP Level (Output Water Temp. at 35℃/55℃)	A+++/A++	A+++/A++	A+++/A++
Maximum Allowable Pressure	3.2MPa	3.2MPa	3.2MPa
Electrical Shockproof	Ⅰ	Ⅰ	Ⅰ
Refrigerant Type/Charge/GWP(kg)	R290/3.1/3	R290/3.1/3	R290/3.1/3
Compressor Quantity	1	2	2
Fan Motor Quantity	1	2	2
Fan Motor Type	DC
Expansion Valve	EEV/Sanhua
Air Flow Direction	Vertical
Water Flow Volume(m³/h)	8.6	12.9	18.0
Water Pressure Drop	65kPa	75kPa	76kPa
Dimensions(LWH)(mm)	110011002150	220011002255	220011002255
Packing(LWH)	115011502280	226022602385	226011602385
Working Temp. Range(℃)	-25~46
Noise(dB(A))	≤65	≤70	≤75
IP Class	IPX4
Net Weight(kg)	450	980	1150
Water Connection	G1-1/2	DN65	DN80

Details Images

Manufacturing Technique

Company Profile

FAQ

Q1: Are you a manufacturer or trading company? How can I trust your company?

Q2: Can you provide OEM/ODM service?

A: Yes, GOODHEAT offers OEM/ODM services. We have our own sheet metal production line and powder coating line, ensuring customized solutions and high-quality production tailored to your needs.

Q3: Do you have technical support?

A: We have a professional technical team standby for you 7*24 hours.

Q4: Can you help to calculate the best logistics and transportation solution?

A: Yes, our professional logistics team will help you arrange cost-effective shipping services, allowing you to ship quickly and at a lower cost. Normally we recommend shipping by FCL.

Q5: What is your lead time?

A: About 35-40 days upon deposit payment and confirmation of artwrok file.

Q6: Can you provide mounting accessories with the equipment?

A: Yes of course. This is one of our standard services and we can calculate and quote the installation kit you require.

Note: Most of our customers prefer to ship the equipment and installation materials together, we specialize in doing this with good packaging methods.

Q7: How about the packaging?

A: Carton packaging, different logos can be customized according to customer requirements.

Q8: What is the payment term?

A: Usually payment is by T/T.

Recommend Products
